RSI Manual Monorail Enclosed Track Conveyor










The RSI manual monorail conveyor system is the ideal solution for hand-push transport and storage applications. It provides an excellent starting point for mechanized product handling.

Constructed of standard components, This RSI manual monorail conveyor can be added onto at any time to build a more sophisticated power monorail or power & free conveyor system. Because of its compatibility with all other overhead conveyors, conversion time is minimal and higher levels of productivity and efficiency are achieved almost immediately.

Straight Track, 3/16" thick, the heaviest in the industry, stocked in 10' lengths.
Horizontal Curves, 3/16" thick, 90į
Frog Switches
VMTs-automatically raise or lower product
Carrier Insert Section
Welding Jigs
Carrier Assemblies
Turntables

Range from 125 to 1,000 pounds






















Maintains Quality
RSI Manual Monorail is a hand-push transport and storage alternative to manual re-handling of product. This decreases the potential for loss or damage.

Utilizes Space Efficiently
RSI Manual Monorail frees up vital floor space, providing product movement throughout a facility and allowing for organized product flow.

Maximizes Product Storage
RSI Manual Monorail provides dedicated storage in user specified area. This system eliminates wasted space and efficiently stores product in an organized manner within the same work areas, day after day.

Reduces Product Damage and Worker Injury
Since product is suspended from a RSI Monorail carrier, manual re-handling of product is kept to a minimum, reducing the chance of product damage. VMTs automatically raise and lower product, eliminating injuries related to lifting and bending.

Increases System Life
RSI Manual Monorailís enclosed track protects carriers and runways from dirt and other contaminants. In addition, RSI Manual Monorailís sliding frog plates support loads through switches providing both smooth travel and longer switch life.

Facilitates Upgrades


RSI Manual Monorail components are compatible with most conveyor systems. As a result, RSI Monorail can be upgraded when needed.

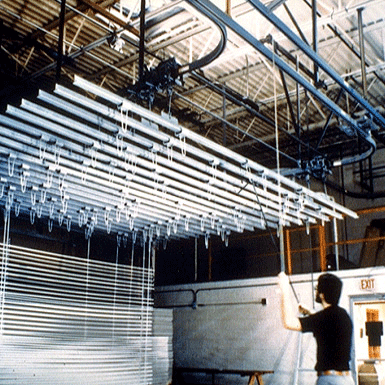

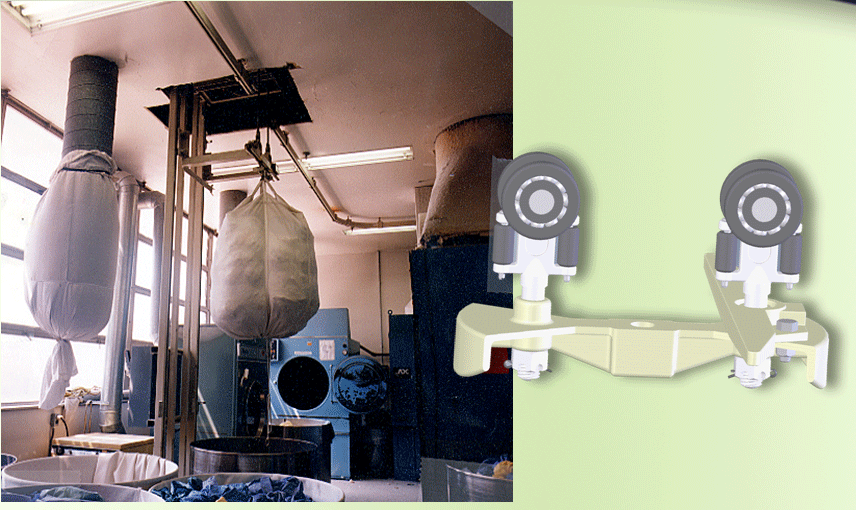

Photos courtesy of RW
