RSI I-Beam Monorail Conveyor










RSI I-Beam Monorail Conveyor Systems combine flexibility of design with heavy duty capacity. Utilizing the proven reliability of 3" and 4" RSI I-Beam load channels,  RSI I-Beam Monorail is an ideal high-capacity solution for transporting and storing work-in-process.

Manufactured and stocked in modular components,  RSI I-Beam Monorail systems ensure unparalleled precision, ease of movement and quick turnaround on fast track projects.
3" and 4" track constructed from high strength 1045 structural RSI I-Beam. Chain is available in X348 and X458 sizes.
All chain is drop-forged and rivetless construction.
Trolleys are available in sealed or open bearing designs.
Standard horizontal roller bank turns available in sizes from 16" radius to 6-0" radius.
Standard drive units ranging from 1200lbs. chain pull to 3000lbs. chain pull.
Control systems available from simple manual, PLC-based or complex PC-based to fit your system needs.
Made in U.S.A.

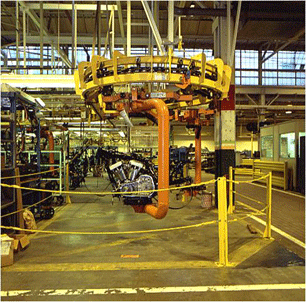

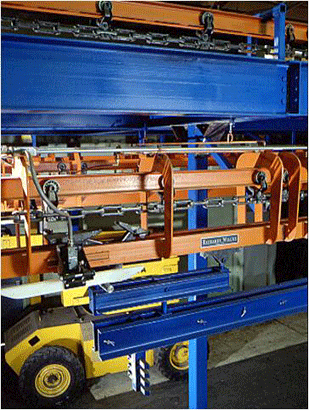

Photos courtesy of RW



Long service life.
The RSI I-Beam track manufactured of 1045 high carbon steel has outstanding wear and load capacities. The drop-forged trolleys are designed for heavy use with smooth running operation.

Ease of Assembly.
The chain is easily assembled or adjusted without the need for tools. The trolleys incorporate rivetless construction.

Heavy Duty Capacity.
The trolleys and loadbars are available in capacities up to 400# each with 3" track, and up to 800# each for 4" track.

Creates Usable Floor Space.
These systems free up valuable floor space for more valued-added operations by organizing product flow and efficiently utilizing available space overhead.

Maintains Quality of Production.
These systems eliminate needless production re-handling and manual transportation by accomplishing finishing, assembly processes and/or storage processes with a single material handling system.
