We offer quality I-beam monorail
components at competitive prices.
See the following illustrations for our most popular I-beam
monorail systems and components. Please contact us for
information on any other items needed for your specific
application. Many additional components and accessories are
available.
Equipment shown is available in three standard sizes: 3", 4"
& 6" (X348, X458 & X678) along with the less common 2"
(X228). When ordering 4" components, specify drop (7-3/16"
or 8").
Track, Chain &
Trolley - Typical Configuration

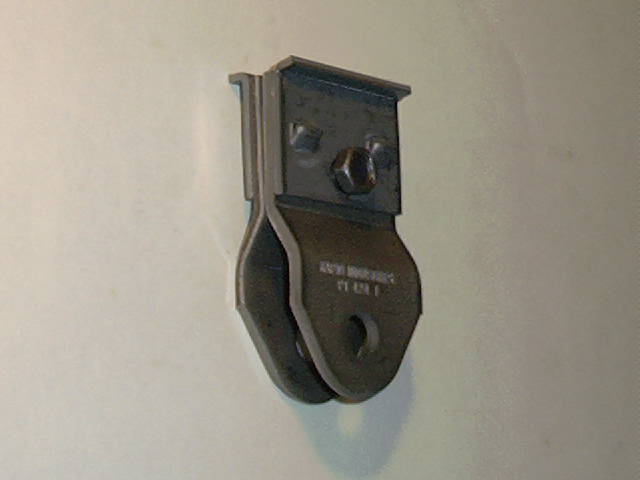

Intermediate "H"
Attachment - Fits Conveyor Chain For Additional Loads

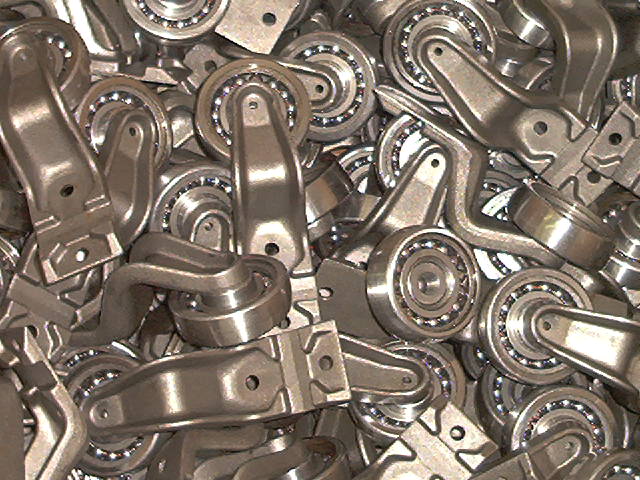

Monorail Trolleys -
Open or Sealed F.B.C. Bearings
Typical I-Beam
Monorail Chain Conveyor

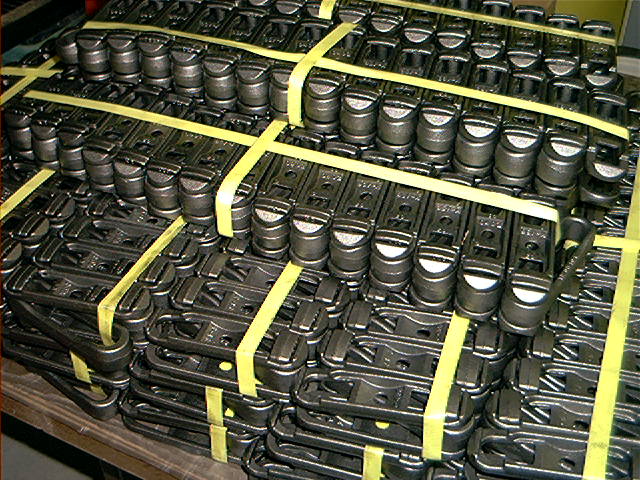

Rivetless, Drop
Forged, Heat Treated Monorail Chain

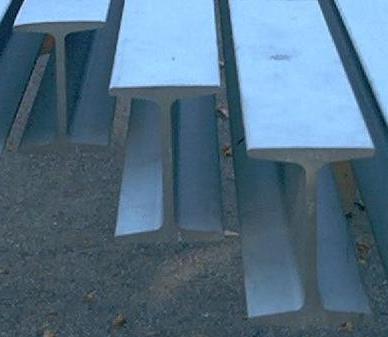

High Carbon Rail
Unpainted, Painted or 304 Stainless

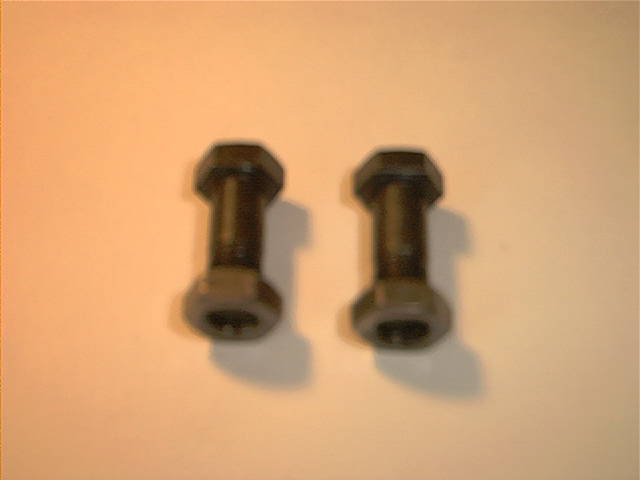

Special Grd. 5
Trolley Bolts with Lock Nuts

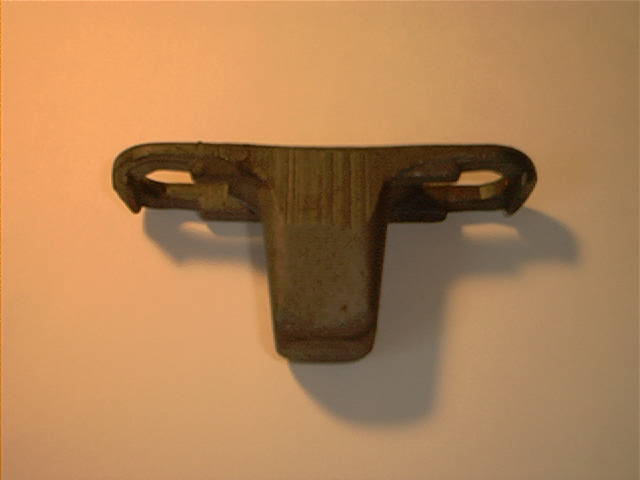

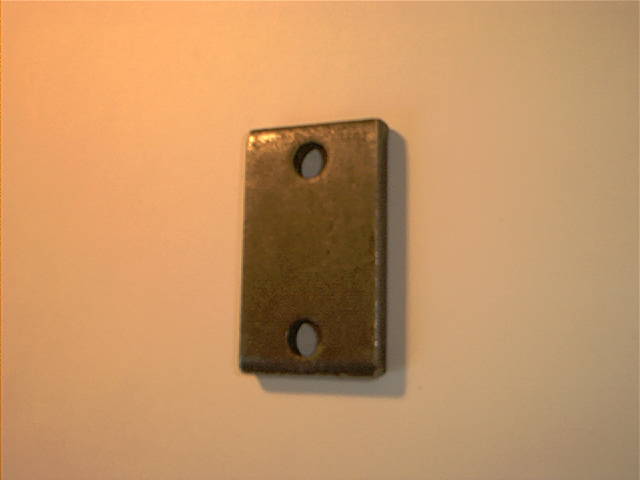

"I" Attachment - For
Intermediate Trolley Brackets Where No Loads are Present

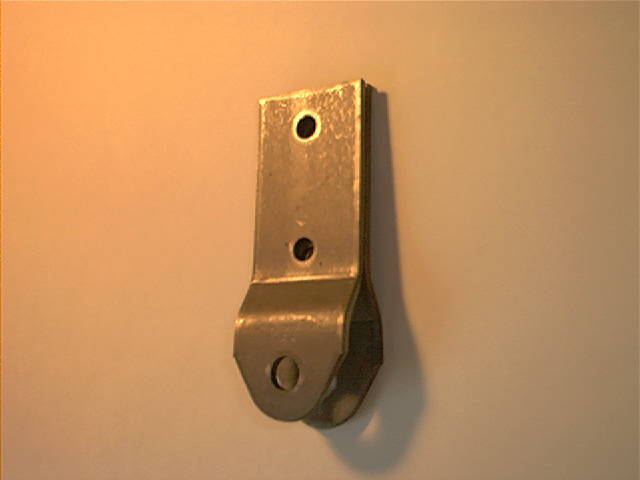

"H" Attachment -
Fits Between Trolley Brackets (2 Pcs.) Forms Clevis Arrgmt.

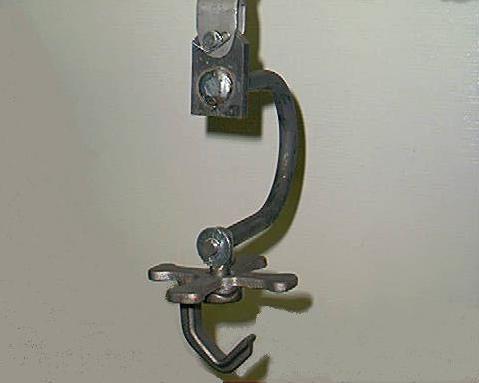

C-Hooks Made to
Order - Allow use of Sanitary Pans
90 Deg. Star Indexer
for Automatic Product Rotating - 125# Cap.

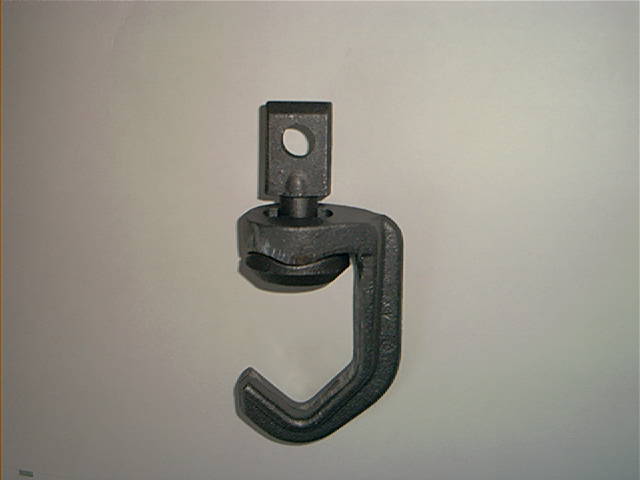

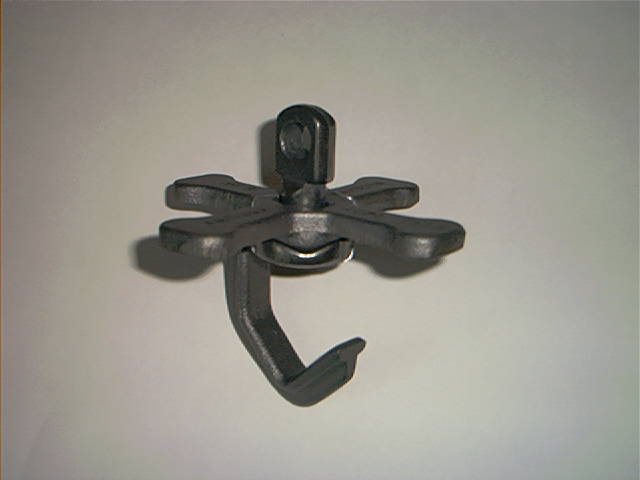

90 Degree Indexing
Hooks - 125# and 200# Capacities
Take-Up Assemblies
Spring, Screw or Air Operated
Caterpillar Drives
1200# - 4000# Pull Const. or Var. Speed
High Temp. TWT's
Graphite Bushed - All Standard Sizes
Traction Wheel Turns
24" to 72" Diameter 30, 45, 90 & 180 Deg

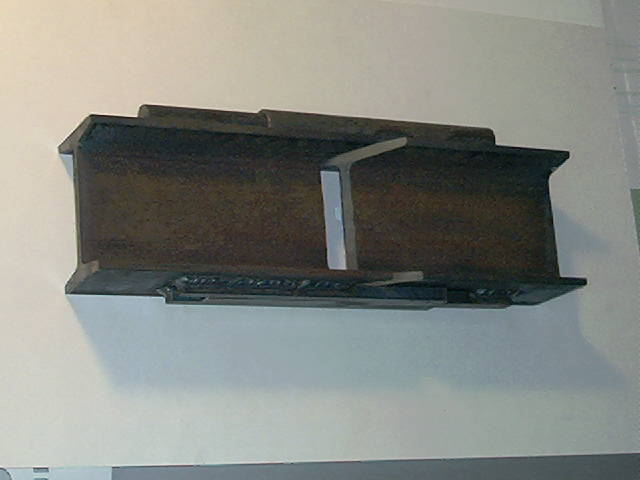

Oven Expansion
Joints, 1" Travel
Roller Bank Turns
18" to 72" Radius - 30, 45, 90 & 180 Deg
High Temp. Roller
Turns c/w Graphite Bearings - Std. Sizes

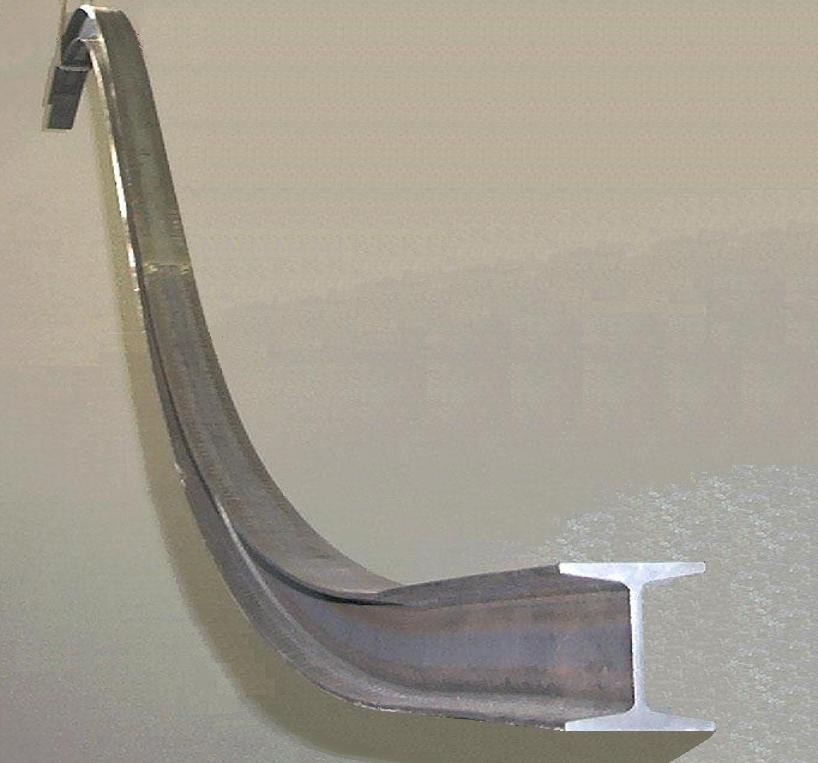

Vertical Curves -
Prefabricated - Rad. & Deg. as Req'd.
Automatic Oilers
Help Ensure Long System Life

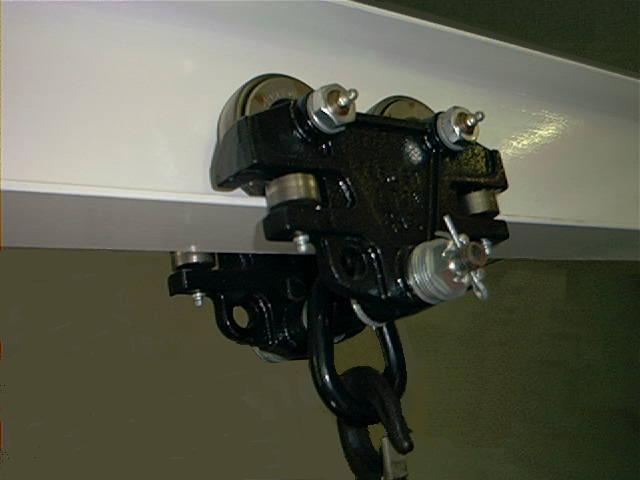

1/4 ton Handpush
Trolley - Adjustable for 2, 3 or 4" Rail
1-Ton Handpush
Trolley - Adjustable for 4, 5, 6 or 8" Rail

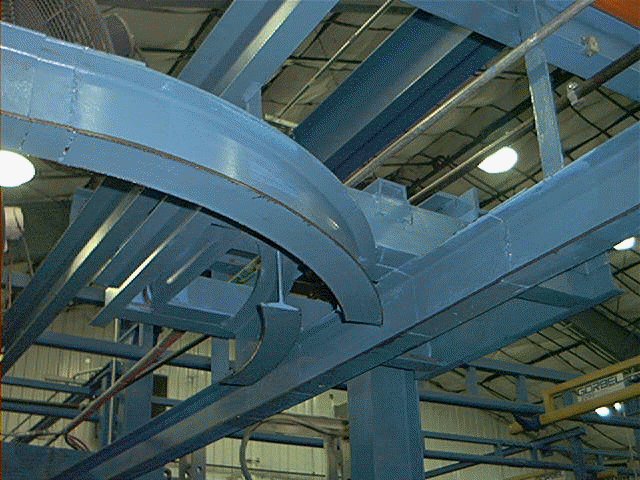

2-Way Glide Switches
- Handpush Air Operated or Man.
Inverted Power
and Free Pusher Dogs Several Styles Avail.

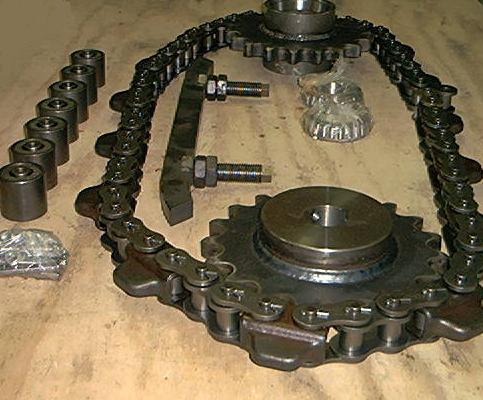

Caterpillar Drive
Rebuilt Kit Includes Typical Wear Items

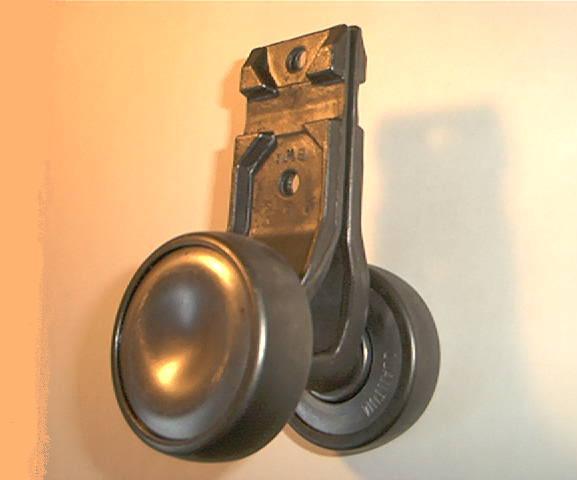

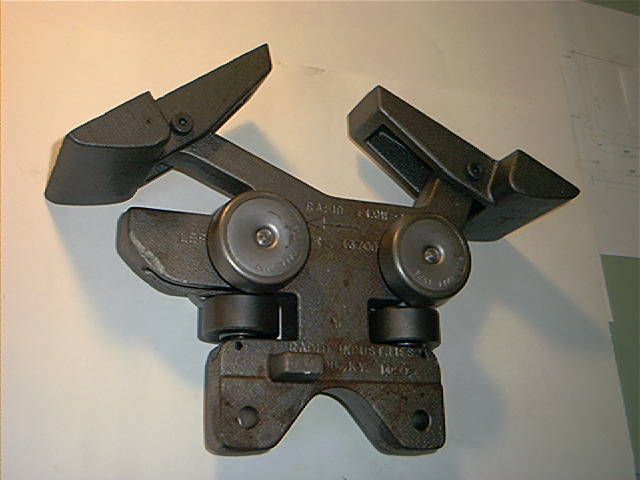

Power & Free Leading
Trolley - Flapper Type 3x3 & 4x4

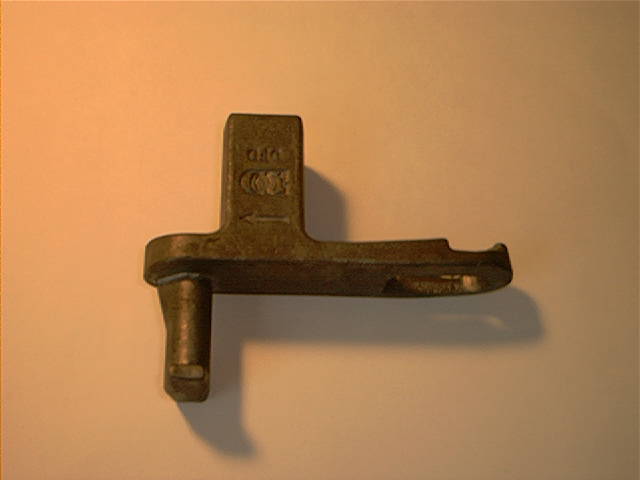

Side Link Pusher Dog
for use with Flapper Type Free Trolley

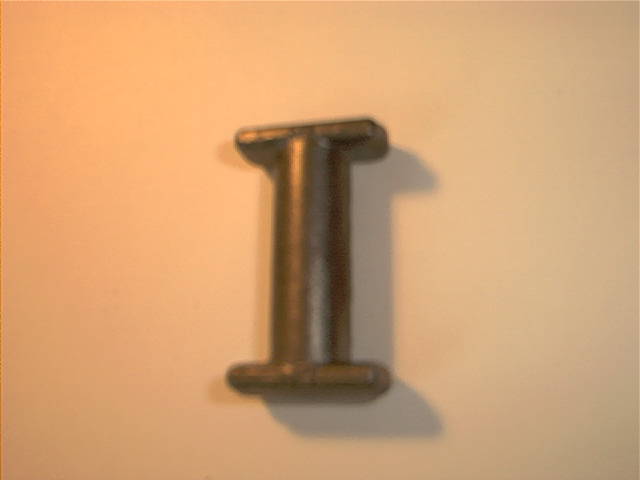

X-Type Replacement
Chain Pin Only (Links Also Available)

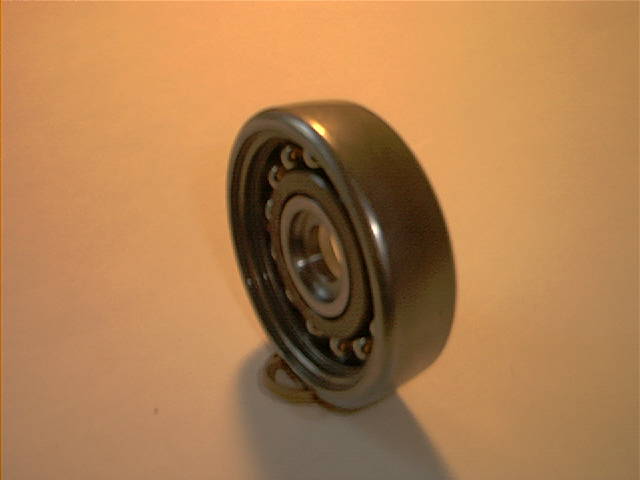

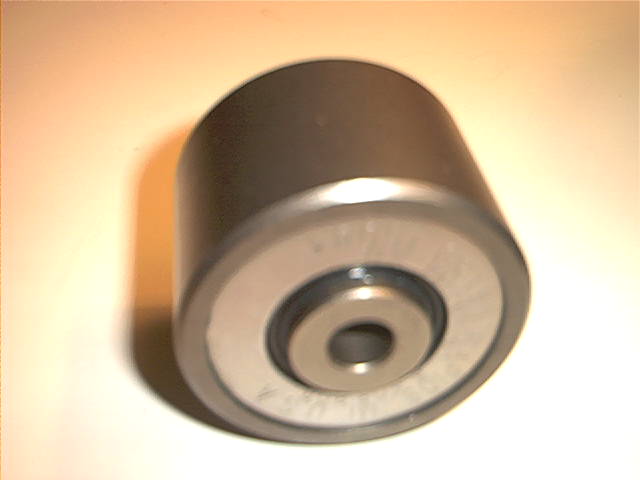

Replacement Wheels
Open or Sealed - for 3, 4 & 6" Conveyor
Inverted X458 Sealed
Full Ball Compliment Trolleys
Pressure Rollers for
Turns & Cat. Drives Std. & High Temp.
Please contact
us for pricing and delivery. Many items are available from
stock.
|
