Spray Booths2

The revolutionary QUADRAFT spray booth was specifically designed to create a virtually turbulence-free airflow through the booth without loss of airflow volume. The only truly turbulence-free booth on the market.

The secret is in the design of the walls and the basement. The booth is double-walled, which gives it a distinctive appearance and clean lines. However, the walls also become the exhaust duct by which air is removed from the booth. Each side panel contributes a large area through which the air can move. By using the walls of the booth as the exhaust duct, RSI has achieved an air flow of up to 19,000 CFM, or over six complete changes of air per minute inside the booth. In addition, this integral ducting reduces heat loss through the walls of the booth, resulting in energy savings. This exhaust ducting is combined with our innovative basement design, which utilizes an arrangement of baffles and deflectors to complete the turbulence-free, full down draft air-flow path.

The QUADRAFT spray booth comes complete with the DFM800R heat system which has a proven track record for reliability and efficiency on RSI spray booths and a user-friendly, fully automated, touch-screen control panel. This spray booth is powder-coated white inside and out as a standard. Other options and customization is available by contacting RSI directly or through one of our sales representatives.

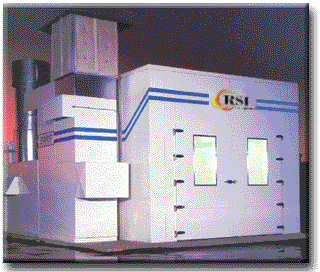

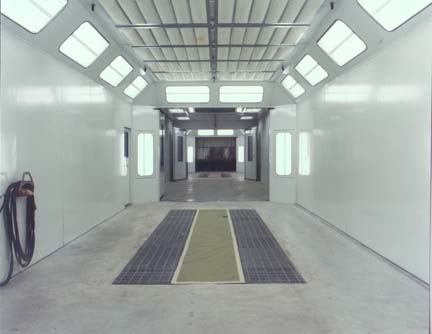

The EUROSTYLE Downflo spray booth originally set the standard for spray booths and continues to be a pacesetter in the industry. The EUROSTYLE Downflo spray booth and its heating system are designed as an integral unit, combining the essentially turbulence-free down flow principle of the booth with the efficiency of a direct fired heater to form a superior environment for spray painting and curing.

The RSI EUROSTYLE Downflo spray booth is designed to increase productivity by providing a reliable and trouble-free system and comes complete with the DFM800R heat system which has a proven track record for reliability and efficiency on AFC spray booths. This spray booth is powder-coated white inside and out as a standard. Other options and customization are available by contacting RSI directly or through one of our sales representatives. A user-friendly and fully automated control panel cycles the booth through the entire spray and bake cycles without operator intervention. Timers and other controls are easily set to control booth temperature for the flash, cure and cool down times. The wide range of control settings will accommodate a great variety of paints and coatings. This spray booth comes complete with all the necessary components and paperwork for installation and operation.

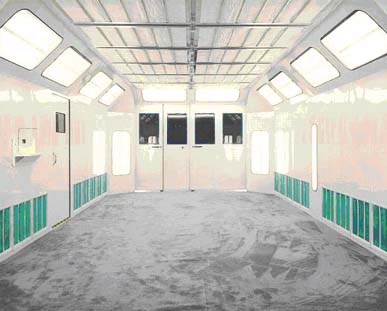

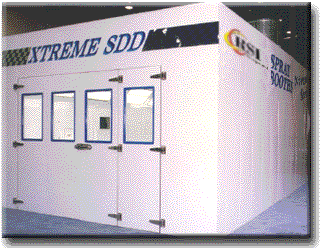

The SDD XTREME spray booth eliminates the need for a pit or basement where construction of this type is not possible and where a raised floor cannot be used due to other limitations such as overhead clearance.

The SDD XTREME spray booth introduces fresh filtered air evenly over the ceiling of the booth above the vehicle. The air flows smoothly down the sides of the vehicle and then is drawn away from the vehicle toward the walls near the floor. It then passes through the exhaust paint arrestors in the walls where the overspray is trapped and the air is then exhausted through the walls and dispersed into the atmosphere.

For increased thru-put, and also for use with newer spray paints and coatings, the SDD XTREME spray booth comes complete with the DFM800R heat system and a user-friendly and fully automated control panel which cycles the booth through the entire Flash, Cure, and Cool cycles without operator intervention.

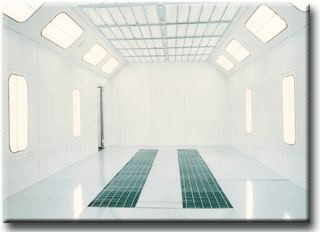

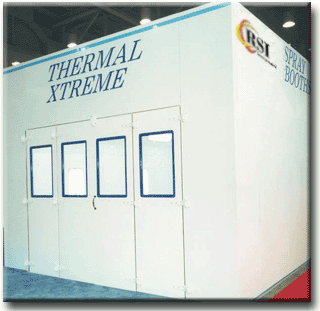

The AUTO THERMAL XTREME insulated spray booth and heat system is an integral unit that forms a superior environment for spray painting and curing. The 3 1/2" insulated walls provide a quiet working environment while being energy efficient. The AUTO THERMAL XTREME spray booth combines the essentially turbulence-free down flow principle of the spray booth with the efficiency of a direct fired heater to form a superior environment for spray painting and curing.

The RSI AUTO THERMAL XTREME spray booth is designed to increase productivity by providing a reliable and trouble free system. A user-friendly control panel cycles the booth through the bake cycle without operator intervention. The timer and the temperature controller are easily set to control booth temperature. This spray booth comes complete with an AMS1000EC heating system that has a variable speed make-up fan for minute heating adjustments.
