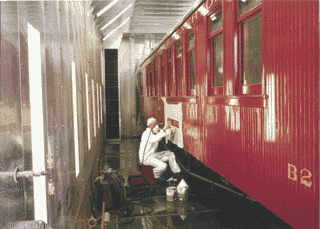

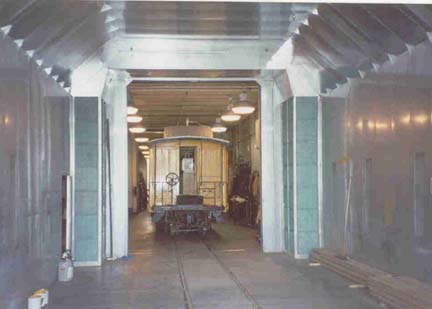

  • The Custom Aire CROSSFLO TRUCK spray booth provides a complete truck painting facility with a choice of three models: STANDARD air flow, REVERSED air flow, and DRIVE-THRU. These booths are constructed of 18GA galvanized steel and are easily assembled following RSI instructions. The exhaust fan is capable of maintaining an air flow rate of 23,000 CFM through the booth.

    DIMENSION FOR ALL MODELS:

    • Inside: 16'0"wide x 15'4"high
    • Outside: 17'4"wide x 15'8"high
    • Doors: 11'0"wide x 14'0"high

      Reversed Aire Flo Models
    • TRA4024: 40'0" inside, 40'2" outside, 24 light fixtures
    • TRA6036: 60'0" inside, 60'2" outside, 36 light fixtures

      Standard Aire Flo Models
    • TSA4024: 38'0" inside, 40'2" outside, 24 light fixtures
    • TSA6036: 58'0" inside, 60'2" outside, 36 light fixtures

      Drive-thru Models
    • TSD4024: 40'0" inside, 40'2" outside, 24 light fixtures
    • TSD6036: 60'0" inside, 60'2" outside, 36 light fixtures
    FEATURES INCLUDE:
    • 1 - 42" diameter tube-axial fan with variable pitch, non-sparking blades
    • 1 - 5HP open type motor for operation on 208/230/460 VAC, 60Hz, 1 or 3 phase
    • One set of Custom Tacky air supply filters and one set of exhaust arrestors
    • Fluorescent light fixtures with clear tempered glass with tubes
    • 3'0" x 7'0" personnel access door with observation window
    • 6 feet of exhaust stack, roof jack, and weather cap
    • Door limit switches and air valve
    • Painter's work station
    • Manometer to monitor porosity of arrestors
    • Installation hardware, caulking, and door gaskets
    • Blueprints and assembly instructions

    Custom designs and various options are available.

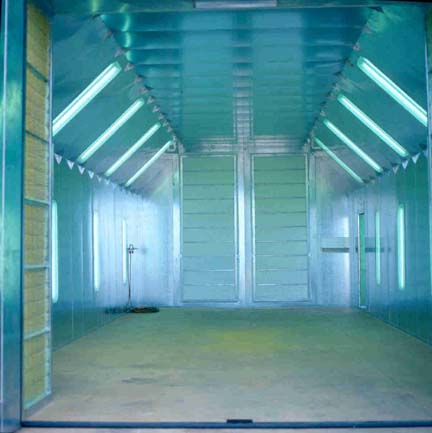

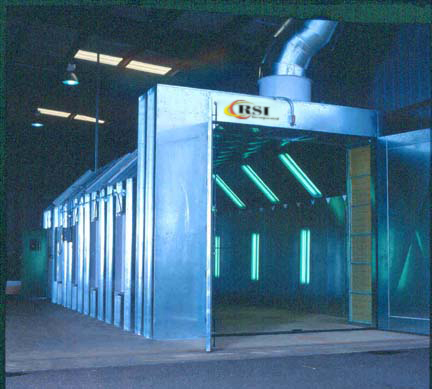

The Custom Aire AUTO/TRUCK CROSSFLO spray booth provides a complete automotive and truck painting facility with a choice of three models: REVERSED AIRE FLO, DRIVE-THRU, and STANDARD AIRE FLO. The booth is constructed of 18GA galvanized steel and is easily assembled following RSI instructions. The exhaust fan is capable of maintaining an air flow rate of 16,400 CFM through the booth.

DIMENSION FOR ALL MODELS:

  • Inside: 15'0"wide x 11'4"high
  • Outside: 16'4"wide x 12'0"high
  • Doors: 10'0"wide x 10'6"high

    Reversed Aire Flo Models
  • CRA2714: 27'0" inside, 27'2" outside, 14 light fixtures
  • CRA3318: 33'0" inside, 33'2" outside, 18 light fixtures

    Standard Aire Flo Models
  • CSA2814: 26'0" inside, 28'2" outside, 14 light fixtures
  • CSA3418: 32'0" inside, 34'2" outside, 18 light fixtures

    Drive-thru Models
  • CSD2714: 27'0" inside, 28'2" outside, 14 light fixtures
  • CSD3318: 33'0" inside, 33'2" outside, 18 light fixtures
    FEATURES INCLUDE:
    • 1 - 34" diameter tube-axial fan with variable pitch, non-sparking blades
    • 1 - 5HP open type motor for operation on 208/230/460 VAC, 60Hz, 1 or 3 phase
    • One set of Custom Tacky air supply filters and one set of exhaust arrestors
    • Fluorescent light fixtures with clear tempered glass with tubes
    • 3'0" x 7'0" personnel access door
    • 6 feet of exhaust stack, roof jack, and weather cap
    • Door limit switches and air valve
    • Painter's work station
    • Manometer to monitor porosity of arrestors
    • Installation hardware, caulking, and door gaskets
    • Blueprints and assembly instructions
