The Custom Aire DOUBLE ROW Downflo spray booth has been designed by RSI as a mid-priced booth with high-end performance. The principle of directing air flow down along the sides of the vehicle and out of the booth is recognized by the industry to consistently produce the best results.

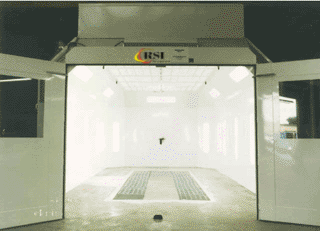

The DOUBLE ROW Downflo spray booth introduces fresh filtered air evenly over the ceiling of the booth above the vehicle. The air is then drawn smoothly down the sides of the vehicle and through the double row of grating in the floor. It then passes through the exhaust arrestors where the overspray is trapped and then exhausted through the uniquely designed basement or "pit" and dispersed into the atmosphere. This down flow of air also provides a safer environment for the painter since overspray and solvents are pulled downward, away from the breathing zone of the painter.

The DOUBLE ROW Downflo spray booth is designed for installation over a basement or "pit". Raised floor installation is also available as an option and the booth is available in both solid back and drive-thru configurations. It comes with full documentation and all accessories necessary to assemble a fully operational booth.

For increased thru-put and also for use with newer spray paints and coatings, the DOUBLE ROW Downflo spray booth is designed to be used with the DFM800R heat system.

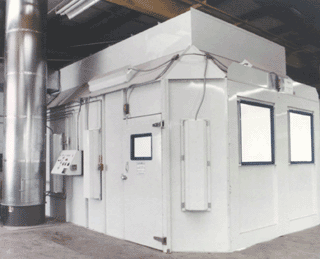

The Custom Aire SIDE Downflo spray booth has been designed by RSI in response to a need for a mid-priced booth with high-end performance. The SIDE Downflo spray booth eliminates the need for a pit or basement where construction of this type is not possible and where a raised floor cannot be used due to other limitations such as overhead clearance.

The Custom Aire SIDE Downflo spray booth introduces fresh filtered air evenly over the ceiling of the booth above the vehicle. The air flows smoothly down the sides of the vehicle and then is drawn away from the vehicle toward the walls near the floor. It then passes through the exhaust paint arrestors in the walls where the overspray is trapped, and the air is then exhausted and dispersed into the atmosphere.

The Custom Aire SIDE Downflo spray booth is available in solid back and drive- thru configurations. It comes with full documentation and all accessories necessary to assemble a fully operational booth.

For increased thru-put, and also for use with new spray paints and coatings, the Custom Aire SIDE Downflo spray booth is designed to be used with the DFM800R heat system.
