#1

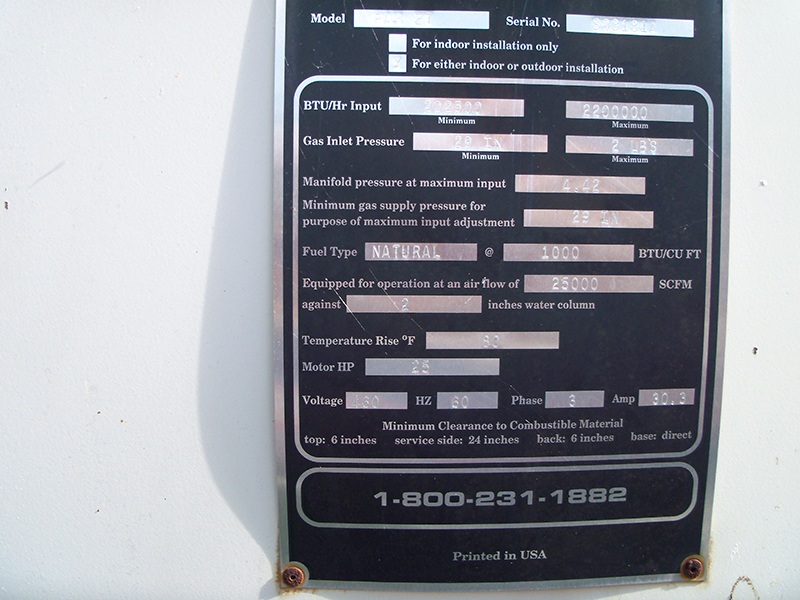

Model RAM-27 25,000 CFM, 100% Direct Fired Gas Air Make-Up Unit.

UNIT INCLUDES :

·         20 HP, 460V/3PH/60CY ODP Motor

·         Motor starter and disconnect switch

·         FM gas train

·         403M temperature control system

·         Horizontal roof mount with downblast discharge

·         Discharge damper with 2 position motor and interlock

·         Intake filter section with 2” EZ Clean filter

·         Intake hood with birdscreen

·         Painted weatherproof casing

·         Low temperature blower shut down with bypass timer

·         Intake air duct thermostat

·         Operating lights

·         80 Degree temperature rise burner (2,160,000 BTUH)

·         High pressure gas regulator



#2

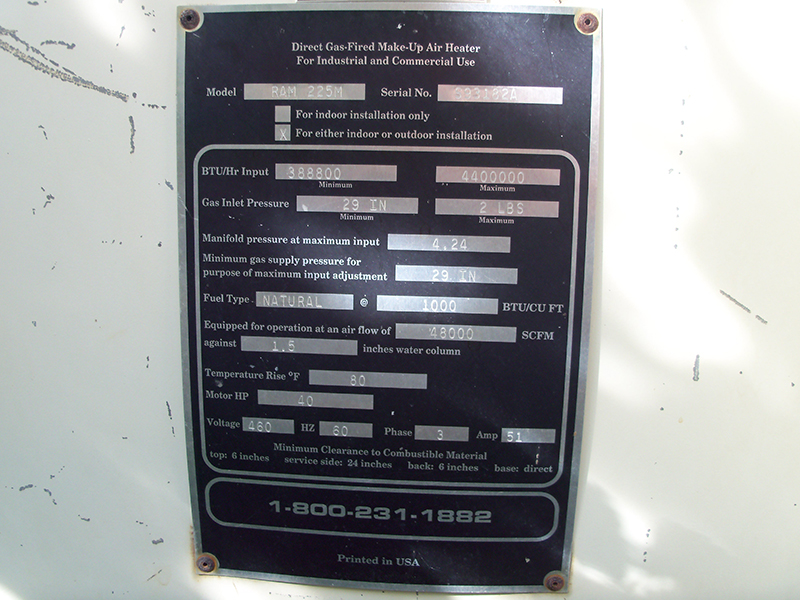

Model RAM-225 48,000 CFM, 100% Direct Fired Gas Air Make-Up Unit.

UNIT INCLUDES :

·         40 HP, 460V/3PH/60CY ODP Motor

·         Motor starter and disconnect switch

·         FM gas train

·         403M temperature control system

·         Horizontal roof mount with downblast discharge

·         Discharge damper with 2 position motor and interlock

·         Intake filter section with 2” EZ Clean filter

·         Intake hood with birdscreen

·         Painted weatherproof casing

·         Low temperature blower shut down with bypass timer

·         Intake air duct thermostat

·         Operating lights

·         80 Degree temperature rise burner (4,147,200 BTUH)

·         High pressure gas regulator
