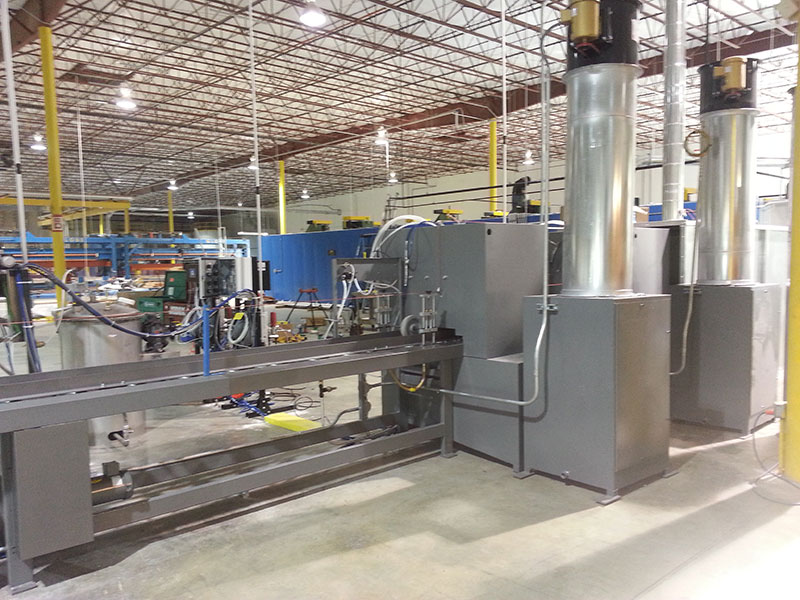

Complete Systems

Many of our machines can be combined together to create a fully automated system capable of meeting the production demands of your specific industry.

Get an edge on the competition!

At RSI, Inc, we will work with you to determine the specific needs of your company and create a system that will greatly increase your production efficiency.

Speed-Up Conveyor

The Speed-up Roller Conveyor is designed to carry material from one operation to the next.

Speed-Up Belt Conveyor

The Speed-up Belt Conveyor is designed to carry material from one operation to the next.

Angled Roller Out-Feed Conveyor

The Angled Roller Out-Feed Conveyor is designed to transfer work pieces 90 from the Belt Conveyor, then into the next operation. The Transfer Conveyor consists of powered conveyor rollers, with pop-up transfer belts.

Custom Machines

Can't find the exact machine you're looking for? Let RSI build you a custom machine that fits your specific needs.

Whether you want a simple modification to a machine we already make, or you need something designed from the ground up, rest assured that RSI will design something that fits your needs perfectly.

We can even design a complete system that will greatly increase your production efficiency and give you an edge on the competition.

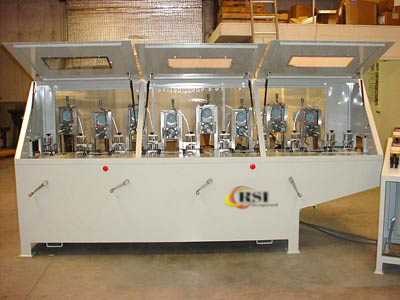

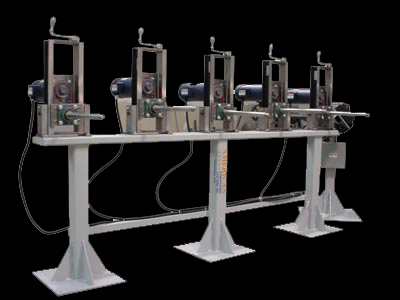

Lineal Profile Sander/Polisher

The Lineal Profile Sander/Polisher is designed to perform a wide variety of surface treatments on moldings, slats, wood, or plastic parts, with virtually no change to the molded profile. Typical uses include: sealer sanding, base coat sanding, de-nibbing, or polishing between coats, as well as high gloss polishing, and buffing. It can also be used for bare wood sanding to improve finishing. In some situations, it can remove knife marks, but it is not specifically designed, or guaranteed to remove them.

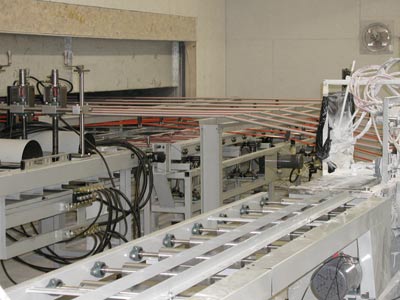

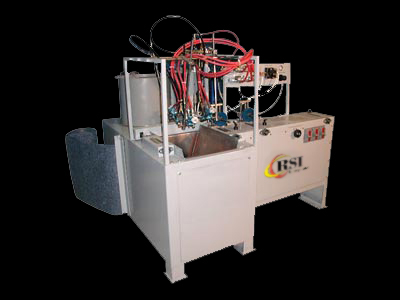

Automatic Sprayer/Finisher

The Automatic Sprayer/Finisher is designed for lineal spraying and finishing of flat or profiled lengths. Common applications include architectural millwork and trim, picture frame moldings, furniture, and cabinet parts.

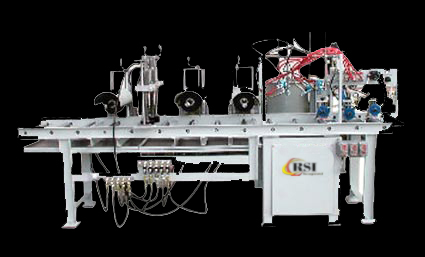

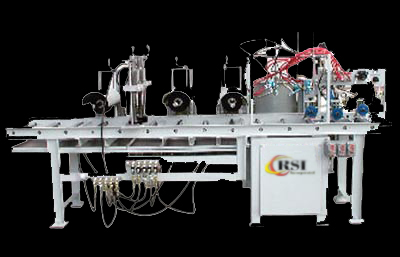

Sprayer / Stain Wiping Machine

The Combination Sprayer / Stain Wiping Machine is designed for wiping stains, spraying lacquers, sealers, primers, and paints. The machine combines the features of the RSI. Sprayer and the Multi-Function Stain Wiper in one versatile, efficient machine.

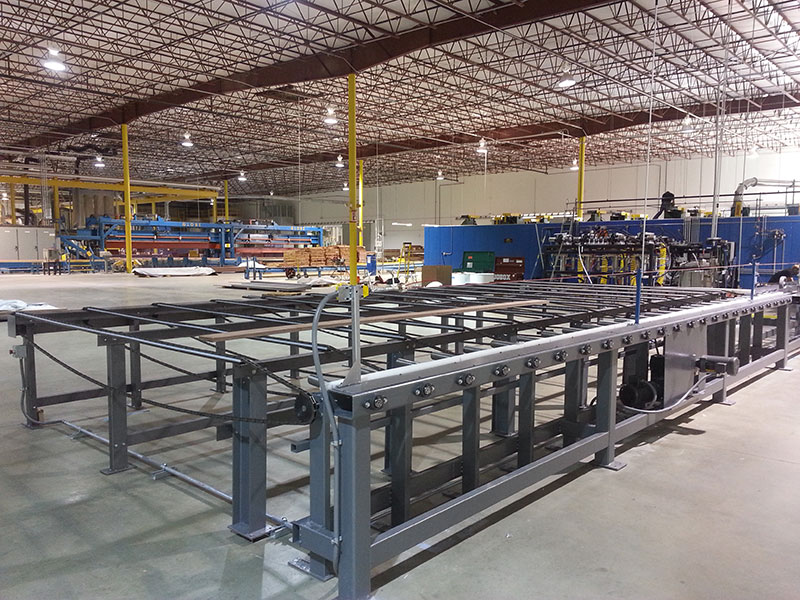

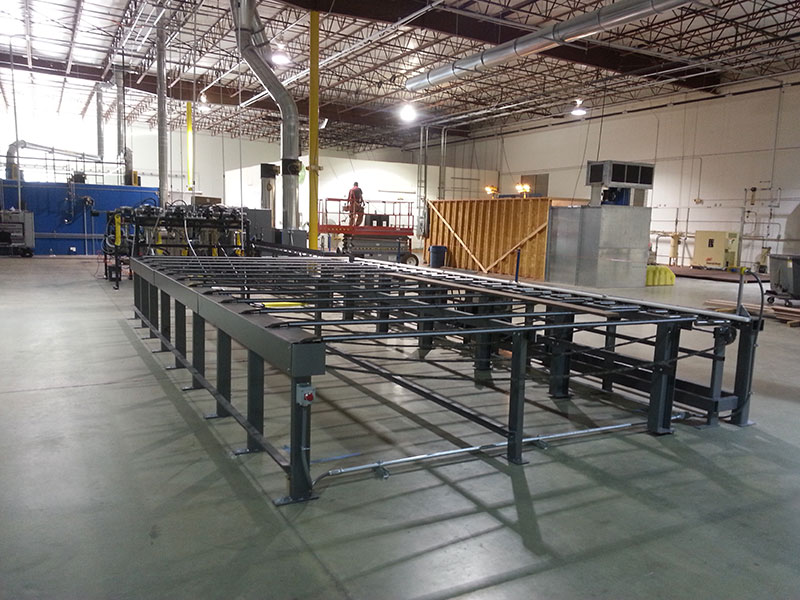

Red-Belt Conveyor
14’ wide x 60’ long
with 90 Transfer Conveyor


The Single Level Belt Conveyor, with 90 Transfer consists of (1) Seven Strand, Single Level Red Belt Conveyor, and (1) 90 “Pop-up” Transfer conveyor.
The Belt Conveyor is spaced to handle parts from 36” to 16’ long. Certain profiles that are prone to tipping will need assistance during the transfer process. The Transfer Conveyor consists of powered conveyor rollers, with pop-up transfer belts, 90 to the Belt Conveyor.

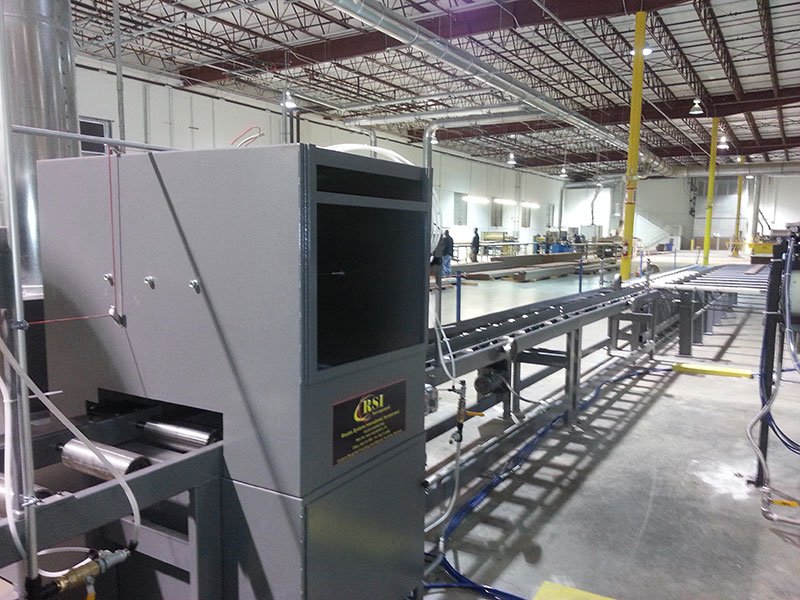

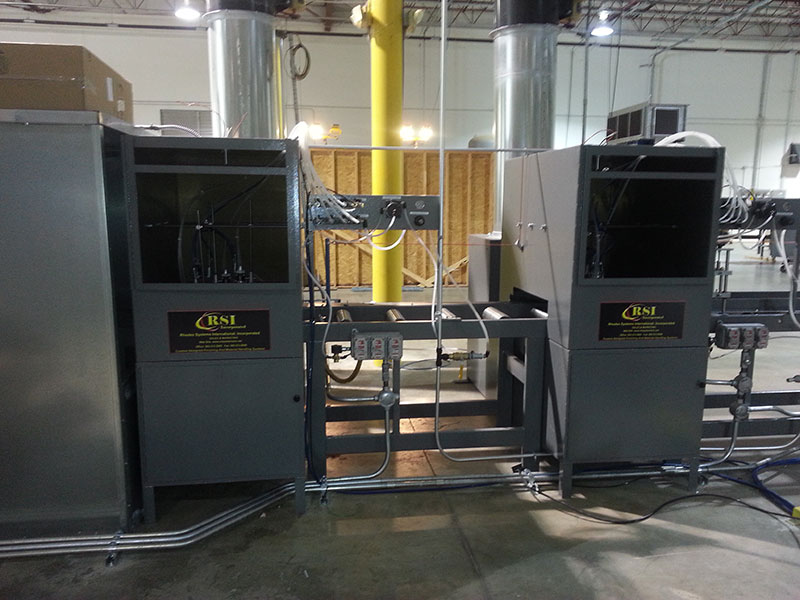

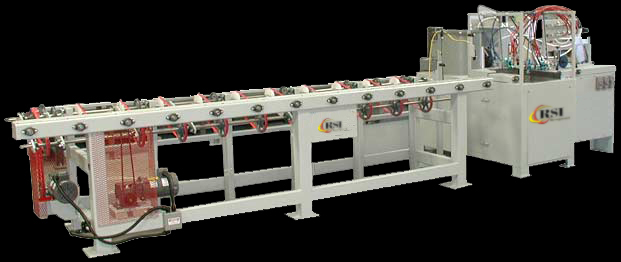

Automatic Sprayer/Finisher for UV Coatings

The Automatic Sprayer/Finisher is designed for lineal spraying and finishing of flat or profiled lengths up to 12” wide. Common applications include architectural millwork and trim, picture frame moldings, furniture, and cabinet parts.

The RSI UV Sprayer coats both long and short pieces before they enter the U-V curing tunnel. When the substrate is fed through the machine, the spray guns are automatically triggered and will continue to spray as long as the stock is being fed through the machine. The spray guns will cut off immediately after each piece completes its pass. A special overspray collection tray and exhaust chamber allow captured materials to be recycled. Becoming increasingly popular, U-V coatings satisfy the strictest EPA emissions regulations including California Rule 1136.

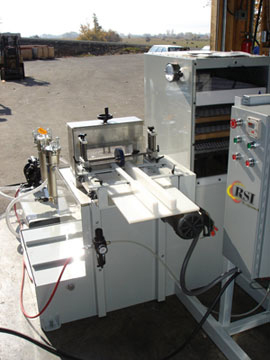

Vacuum Coater for Waterborne Coatings

Vacuum Coaters are used for the application of waterborne coatings on wood, metal and other substrates that have a uniform cross section. The coating is applied to all or selected surfaces at the same time while passing through the application chamber at 100% transfer efficiency. The coating thickness applied is controlled through vacuum pressure, line speed and tolerance of the profile gate opening. Operator controls are kept to a minimum and located in a convenient cabinet for ease of operation.

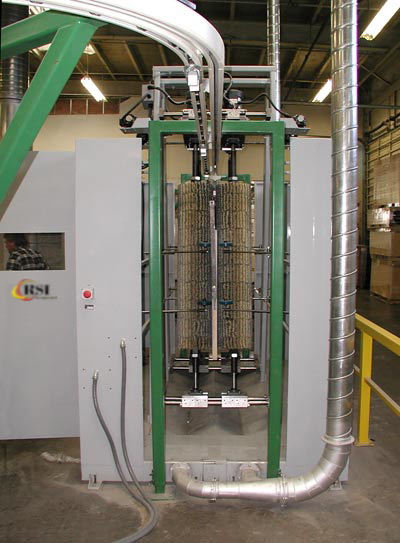

Vertical Door Sander

For Sealer Sanding on a Hanging Door Line. The Vertical Buffing Machine is designed to sand both sides of doors on a hanging conveyor line.
