Type of System: Side-Draft Reclaim Powder Booth
Profile opening: 3’-0” wide x 5’0” high
Dimensions: 28’ long x 15’ wide x 10’-6” high (Est)
Plant Utilities: Electric: 240/480 or 575 volt, 3-phase, 60 hertz, Control – 110 volt
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Poly Upper Housing
(2) Manual Gun Openings
(4) Automatic Gun Openings
(1) Fan Section -7,200 CFM, 100 fpm face velocity
(1) Powder Coated Collector Module

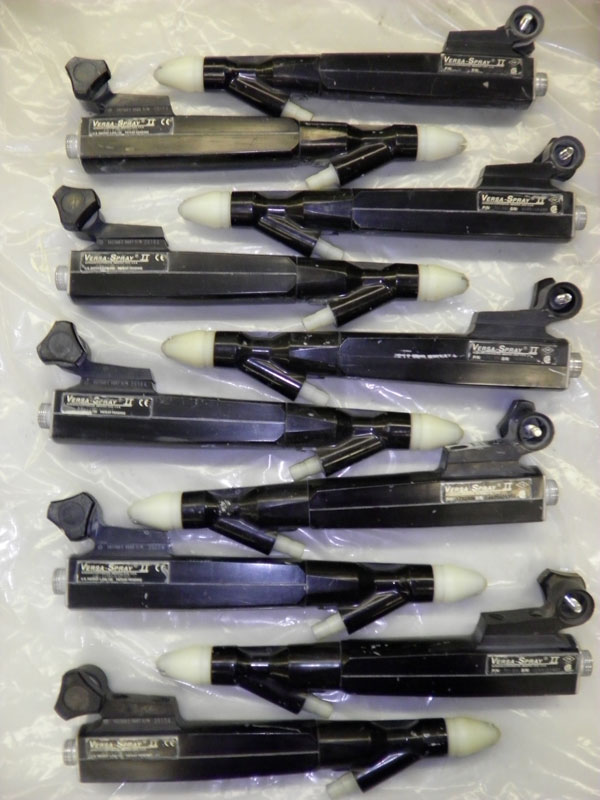

(10) Versa Spray II Automatic Powder Guns

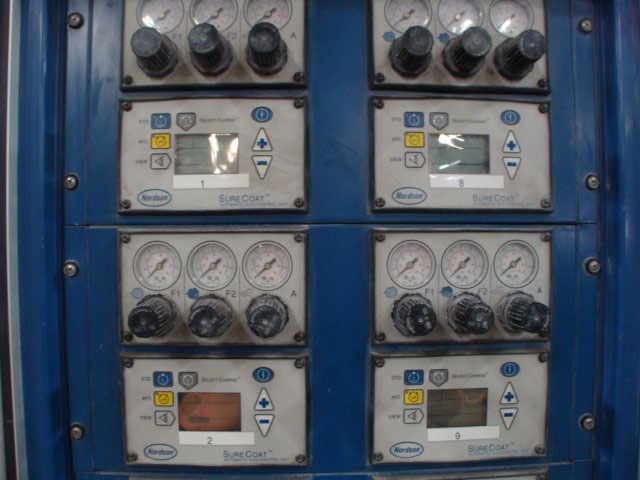

(10) Sure Coat Automatic Controls
(2) Gun Mounting Stands with In/Out Positioning
(10) Control Cables
(2) Nordson Sure Coat Manual Powder Guns
(2) Nordson Sure Coat Manual Controls
(1) HTM-16 150# lb capacity hopper
(1) Azo Sieve
(12) 100-Plus Powder Pumps
(1) Powder Accumulator with Inlet Ports
(1) Direct Vent
(3) Powder transfer kits
(2) Operator Platforms
(4) Powder Gun Stands
(1) Fire Detection System
(1) Part Detection System
(1) Booth Mover System

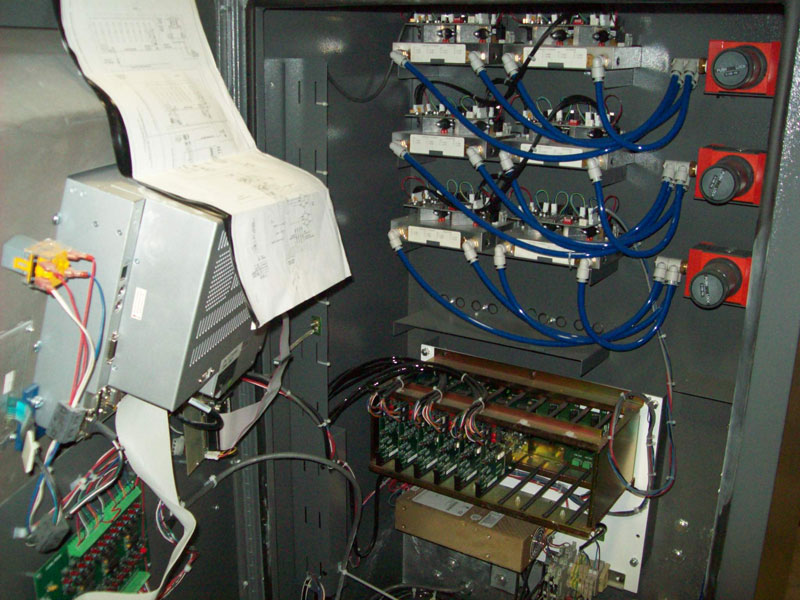

(1) Master Electrical Control Panel

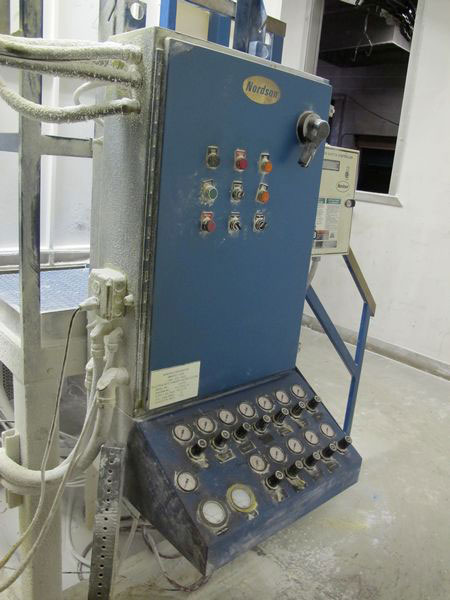

(1) Pneumatic Control Panel
***Additional Color Modules & Hoppers Available***

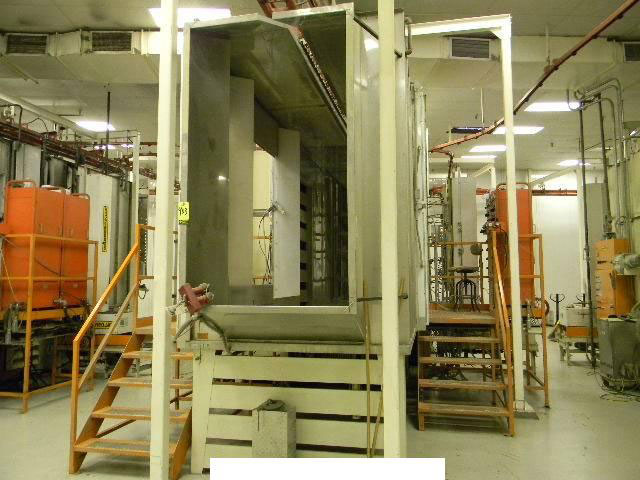

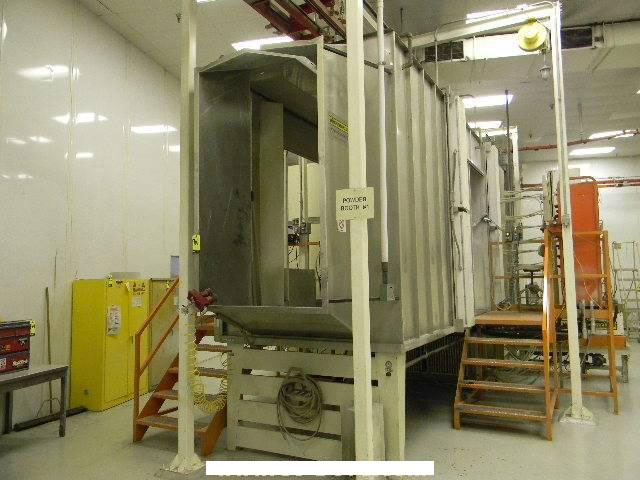

Type of System: Side-Draft Reclaim Powder Booth
Profile opening: 3’-9” wide x 6’6” high (Can be 4’ x 8’)
Dimensions: 30’-6” long x 15’ wide x 13’-0” high
Plant Utilities: Electric: 240/480 or 575 volt, 3-phase, 60 hertz, Control – 110 volt
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Stainless Steel Upper Housing
(2) Manual Gun Openings
(4) Automatic Gun Openings
(1) Fan Section -10,000 CFM
(1) Powder Coated Collector Module
(16) Onada Automatic Powder Guns with Cables/Controls
(2) Onada Manual Powder Guns with Cables/Controls

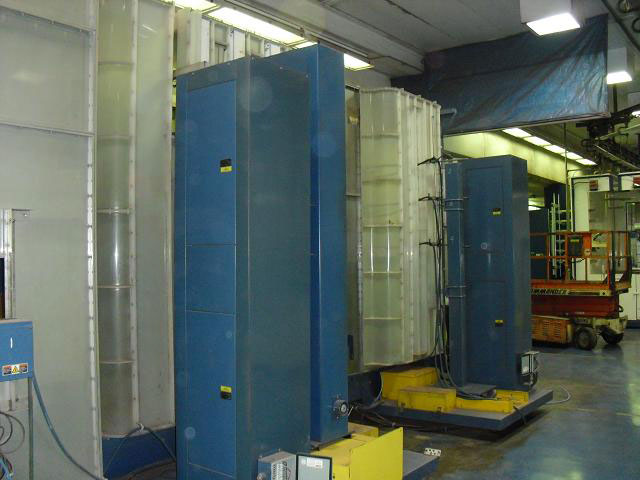

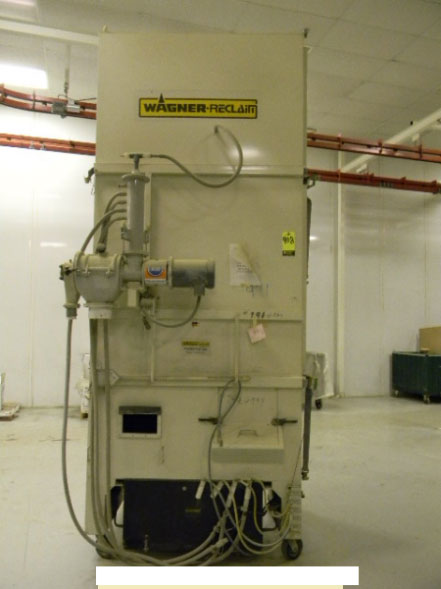

(2) Wagner Reciprocators
(10) Control Cables
(1) 150# lb capacity hopper
(1) Azo Sieve
(18) Powder Pumps
(1) Powder Accumulator with Inlet Ports
(1) Direct Vent
(3) Powder transfer kits
(2) Operator Platforms
(1) Fire Detection System
(1) Booth Mover System
(1) Master Electrical Control Panel
(1) Pneumatic Control Panel
***Additional Color Modules & Hoppers Available***

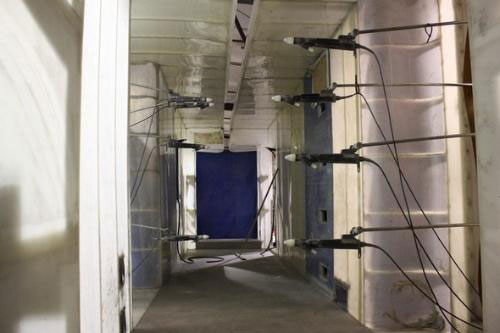

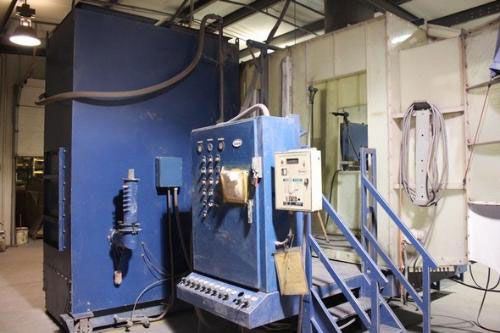

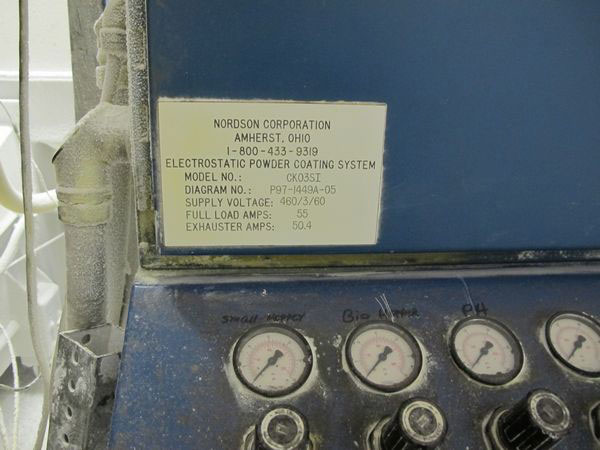

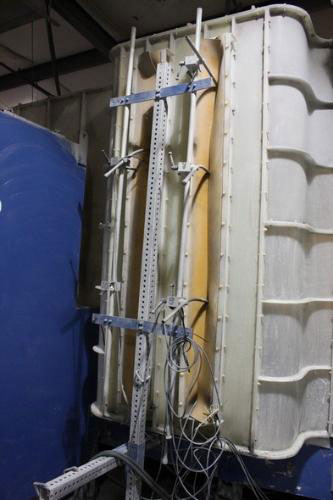

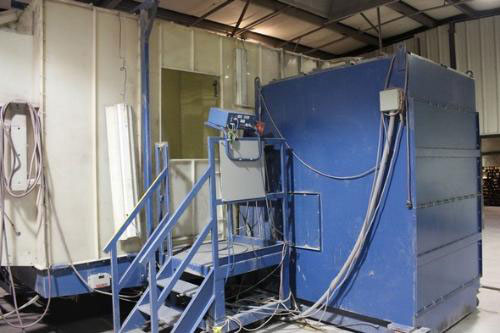

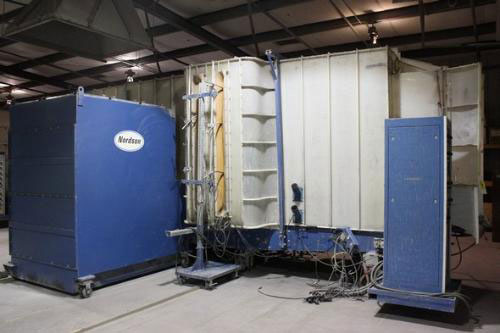

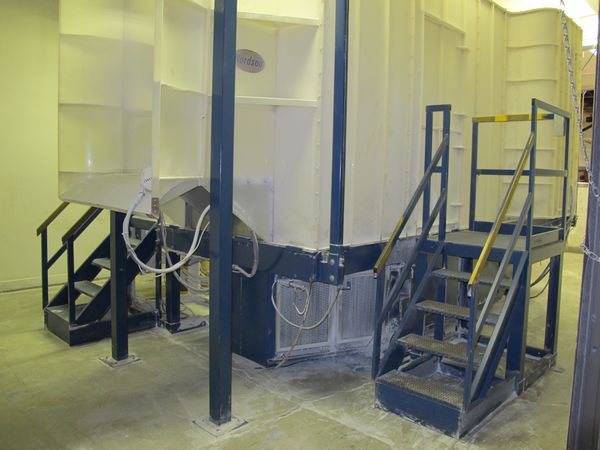

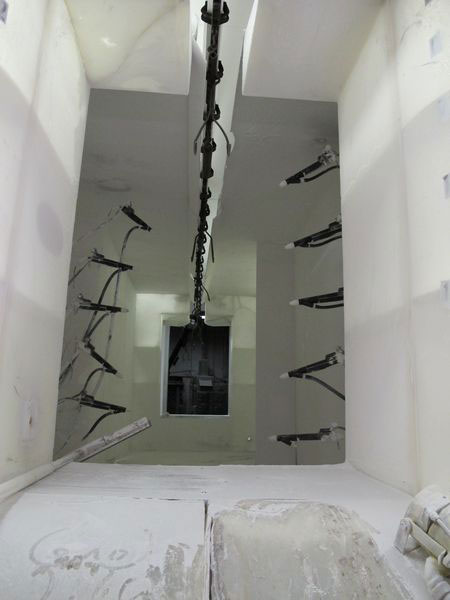

Type of System: Cyclo-Kinetic Side-Draft
Profile opening: 4’-0” wide x 5’-6” high (can be increased)
Dimensions: 25’ long x 18’ wide x 11’ high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, 71 F.L.A.
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Poly Upper Housing
(2) Manual Gun Openings
(4) Automatic Gun Openings
(1) Fan Section -7,200 CFM, 100 fpm face velocity
(1) Collector Module
(1) HTM-16 150# lb capacity hopper
(1) Versa Spray II 8-Gun Control System
(8) Versa Spray Automatic Powder Guns with Cables
(2) Fixed Position Gun Mounting Stations
(10) 100-Plus Powder Pumps
(4) Powder Transfer Pump Kits
(1) Part Detection/Gun Triggering Package

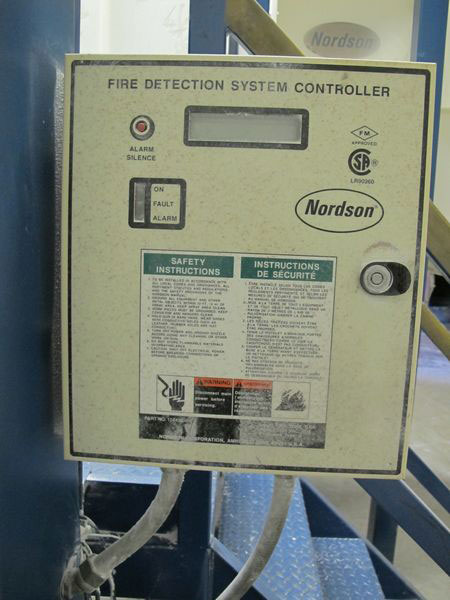

(1) Fire Detection System
(1) Booth Mover Package
(2) Operator Platforms
(1) Master Electrical Control Panel
(1) Pneumatic Control Panel
Type of System: Cyclo-Kinetic Side-Draft
Profile opening: 3’-0” wide x 5’-0” high (can be increased)
Dimensions: 25’ long x 18’ wide x 11’ high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, 71 F.L.A.
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Poly Upper Housing
(2) Manual Gun Openings
(4) Automatic Gun Openings
(1) Fan Section -5,400 CFM, 100 fpm face velocity
(1) Collector Module
(1) HTM-16 150# lb capacity hopper
(1) Versa Spray II 10-Gun Control System
(10) Versa Spray Automatic Powder Guns with Cables
(2) Fixed Position Gun Mounting Stations
(10) 100-Plus Powder Pumps
(4) Powder Transfer Pump Kits
(1) Part Detection/Gun Triggering Package
(1) Fire Detection System
(2) Operator Platforms
(1) Master Electrical Control Panel
(1) Pneumatic Control Panel
Type of System: Reclaim Down-Draft
Profile opening: 5’-0” wide x 5’-0” high (can be increased)
Dimensions: 40’ long x 18’ wide x 11’ high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz
System specs & components: (1) Booth Base Assembly (3) Fan Sections -5,500 CFM each, 16,500 CFM Total
(1) Poly Upper Housing (2) Manual Gun Openings (4) Automatic Gun Openings (3) Collector Modules (1) 250# lb capacity hopper (1) Tribomatic 10-Gun Control System (10) Tribomatic Automatic Powder Guns with Cables (2) Oscillating Gun Movers
(10) 100-Plus Powder Pumps (12) Powder Transfer Pump Kits (1) Booth Mover Package (2) Operator Platforms (1) Master Electrical Control Panel (1) Pneumatic Control Panel
Type of System: Side-Draft, Reclaim or Spray to Waste
Profile opening: 3’-6” wide x 6’-0” high (can be increased)
Dimensions: 25’ long x 18’ wide x 11’ high (est)
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz,
System specs & components:
Booth Base Assembly
Poly Upper Housing
Manual Gun Openings
Automatic Gun Openings
Fan Section -8,000 CFM, 100 fpm face velocity
(3) Collector Modules
(3) 150# lb capacity Hoppers
(1) Versa Spray II 10-Gun Control System
(2) Fixed Position Gun Mounting Stations
(9) Powder Transfer Pump Kits
(1) Fire Detection System
(1) Booth Mover Package
(2) Operator Platforms
Master Electrical Control Panel
Pneumatic Control Panel
Type of System: Side-Draft, Reclaim or Spray to Waste
Profile opening: 3’-6” wide x 6’-0” high (can be increased)
Dimensions: 25’ long x 18’ wide x 11’ high (est)
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz,

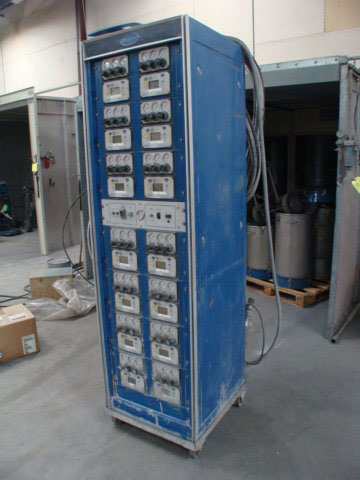

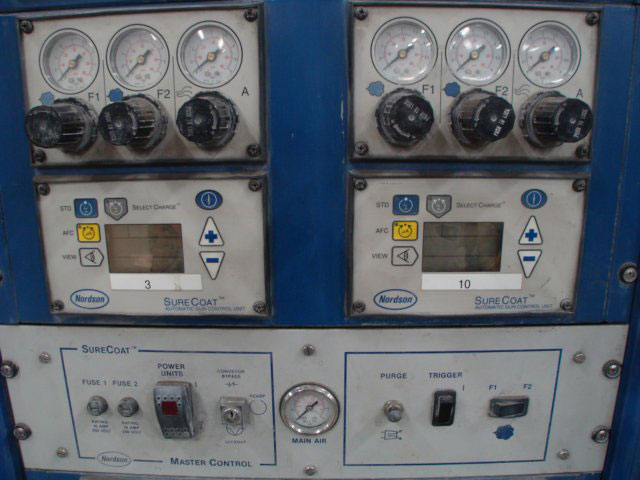

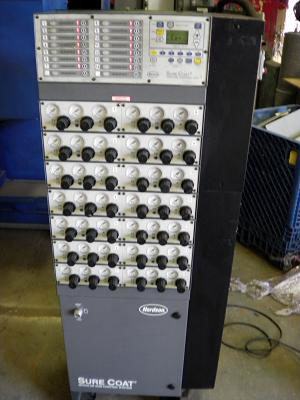

(1) Nordson Sure Coat System with Master Control

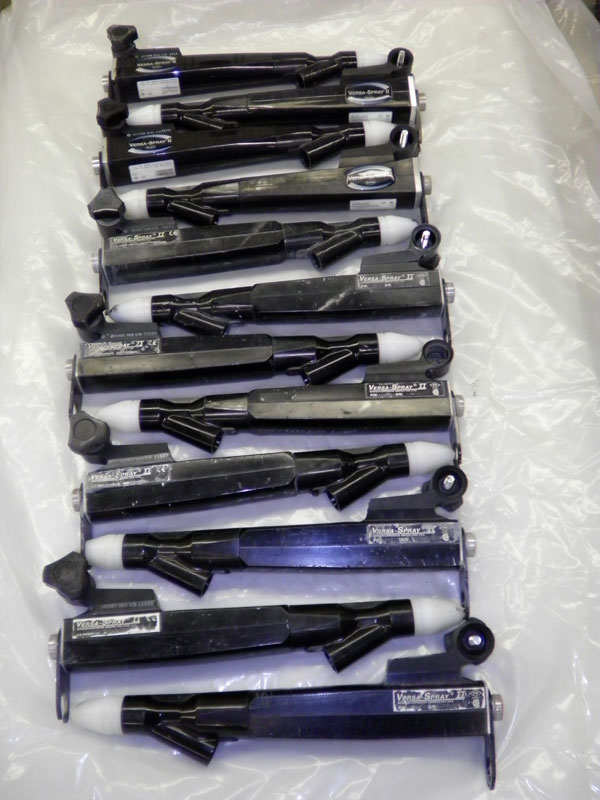

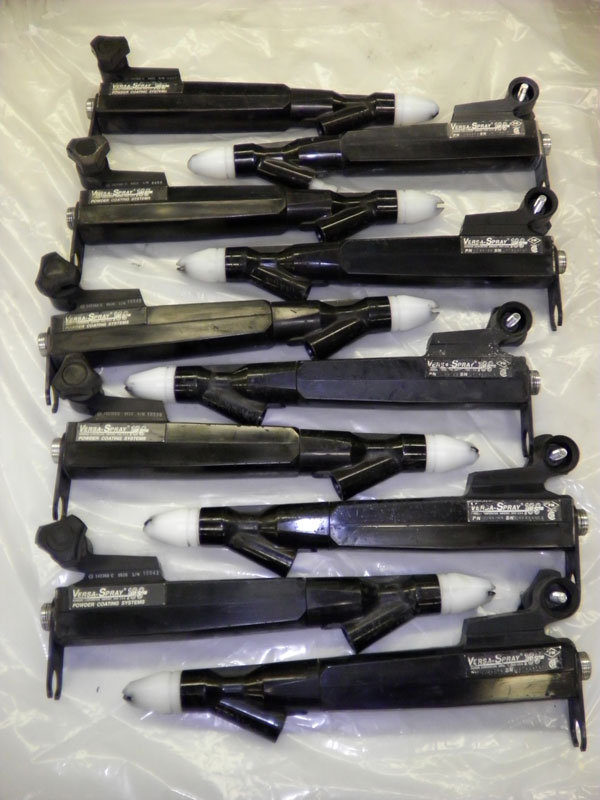

(14) Nordson Versa Spray II Powder Guns
(14) Nordson 100 Kv Cables
Cleaned, Tested, & Ready for Shipment
B-225: Nordson Sure Coat Powder System
Type of System: Down-Draft Reclaim Powder Booth
Profile opening: 12” wide x 36” high (Can be made larger)
Dimensions: 16’-6" long x 13’ wide (with stairs) x 9’-10” high
Plant Utilities: 480 volt, 3-phase, 60 hertz, Control – 110 volt
System specs & components:
Condition – Very Good
(1) Booth Base
(1) Poly Upper Housing
(1) Fan Package - 2,500 CFM, 100 fpm face velocity
(1) 24” x 48” Manual openings
(2) Automatic Gun Openings
(1) Control Cabinet with Master Control
(2) Color collectors, 1 – New, never used
(1) 80 lb color hopper
(1) Gun mounting stand
(4) Powder transfer pumps
(1) Complete system control panel, 480 volt 3-phase
(1) Complete pneumatic control system
Powder Coating Guns Available
B-224: Nordson Horizon 200 Powder System
Type of System: Side-Draft Reclaim Powder Booth
Profile opening: 3’-6” wide x 7’4” high
Dimensions: 28’ long x 15’ wide x 12’-6” high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, Control – 110 volt
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Poly Upper Housing
(2) Manual Gun Openings
(4) Automatic Gun Openings
(1) Fan Section -12,500 CFM, 100 fpm face velocity
(1) Powder Coated Collector Module
(12) Versa Spray II Automatic Powder Guns
(12) Versa Spray II Automatic Controls

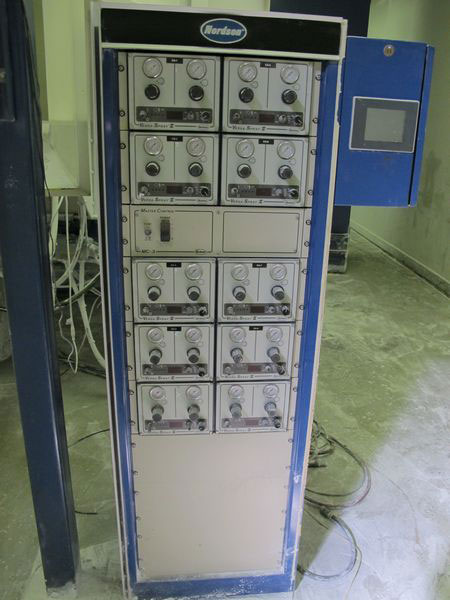

(1) MC3 Control Center
(2) Nutro Reciprocators
(12) 4 meter Control Cables
(1) HTM-16 200# lb capacity hopper
(12) 100-Plus Powder Pumps
(1) Rotary Sieve
(1) Powder Accumulator with Inlet Ports
(1) Direct Vent
(3) Powder transfer kits
(2) Operator Platforms
(4) Powder Gun Stands
(1) Fire Detection System
(1) Part Detection System
(1) Master Electrical Control Panel
(1) Pneumatic Control Panel

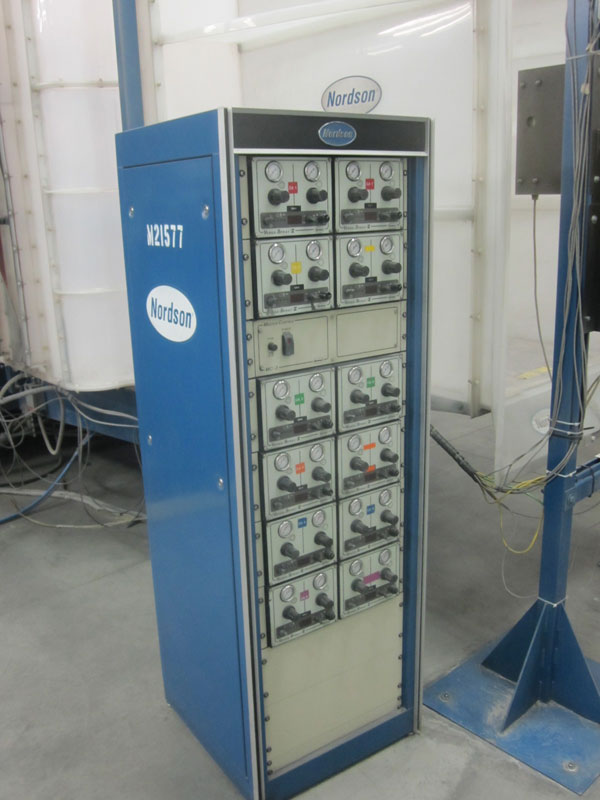

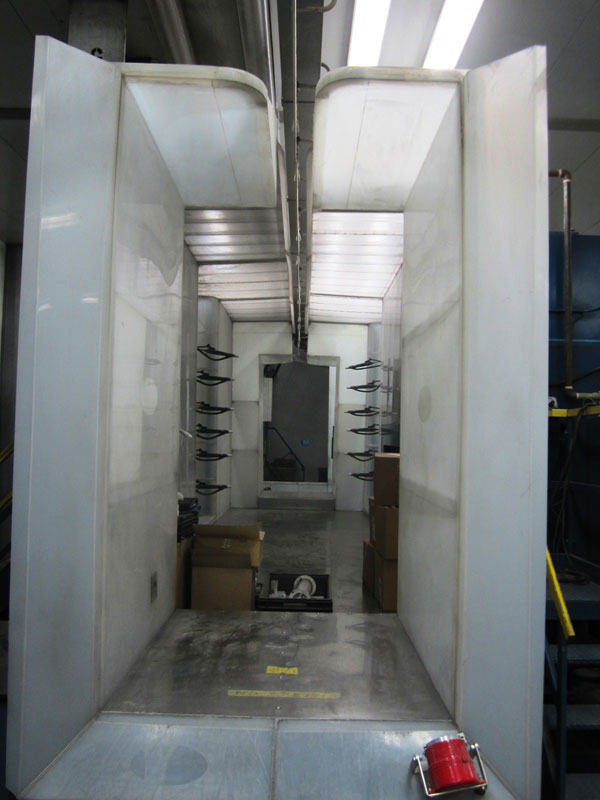

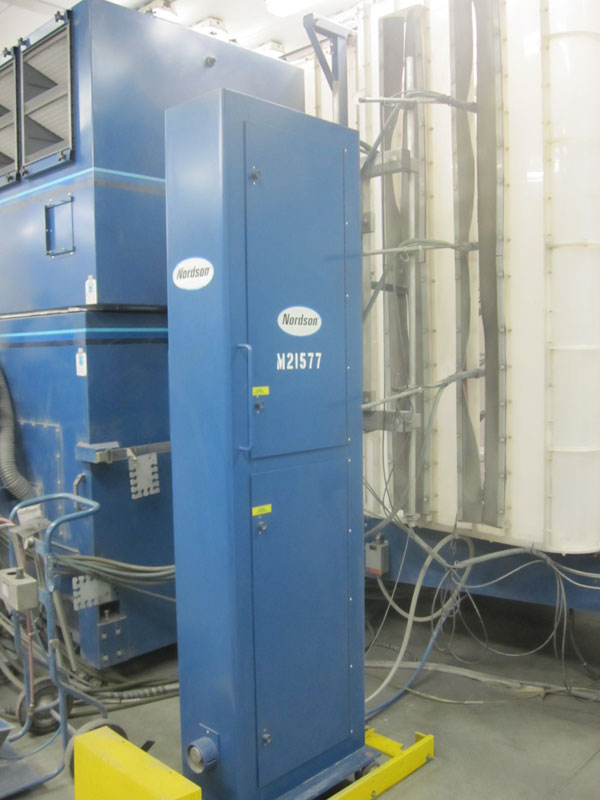

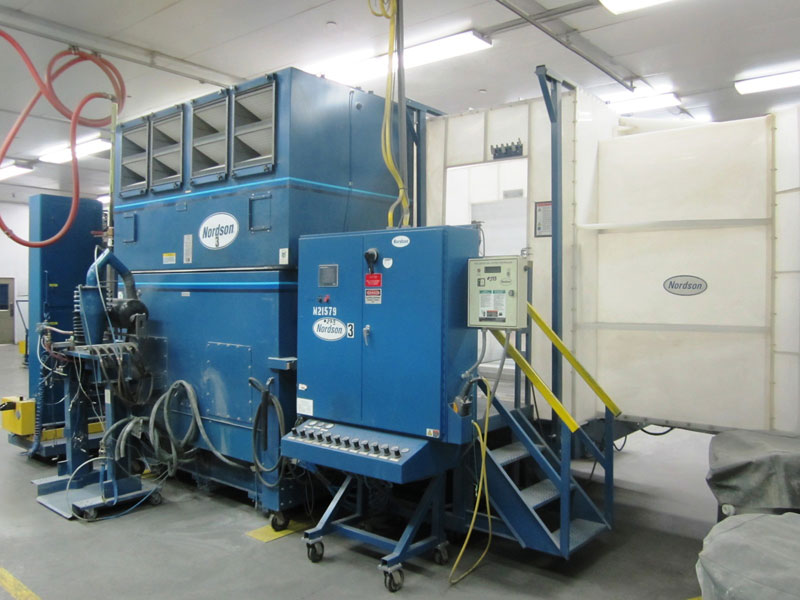

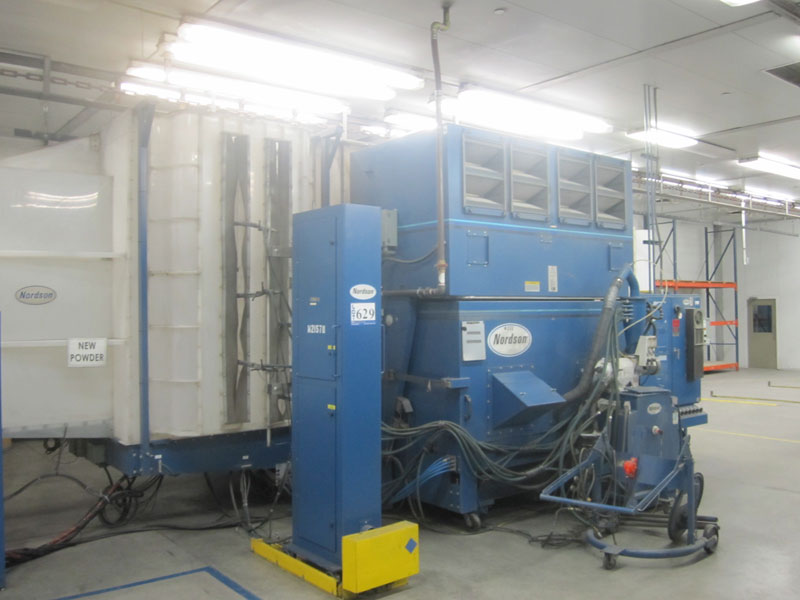

B-227: Nordson Excel 2002 Powder Booth System
Type of System: Side-Draft Reclaim Powder Booth
Profile opening: 3’ wide x 7’6” high
Dimensions: 21’ long x 19’ wide x 13’ high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, Control – 110 volt
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Poly Upper Housing
(2) Manual Gun Openings
(2) Automatic Gun Openings
(1) Fan Section -6,000 CFM, 100 fpm face velocity
(1) Collector Module
(3) HTM-16 200# lb capacity hoppers
(10) 100 Plus Automatic Powder Guns with Control
(10) 100-Plus Powder Pumps
(1) Powder Accumulator with Inlet Ports
(2) Operator Platforms
(1) Master Electrical Control Panel
(1) Pneumatic Control Panel

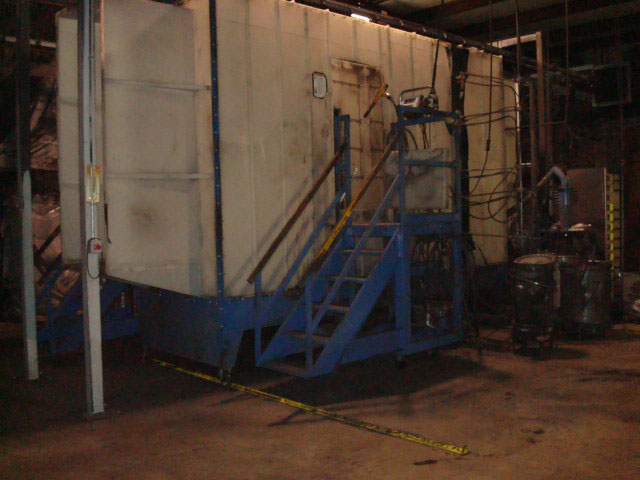

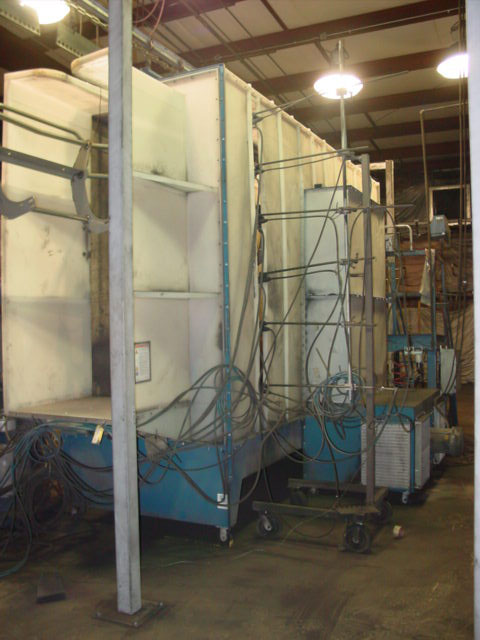

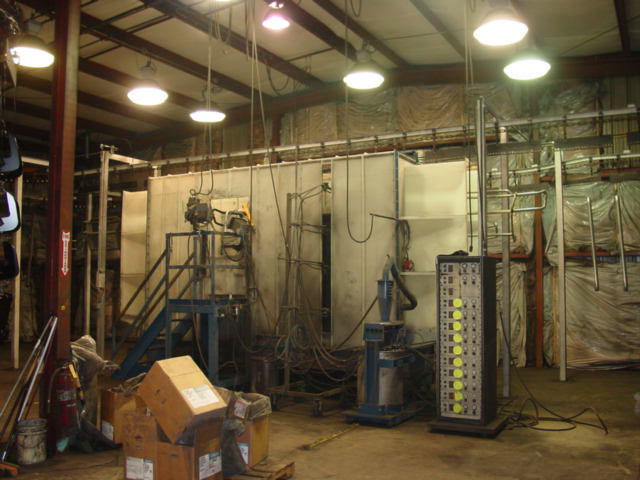

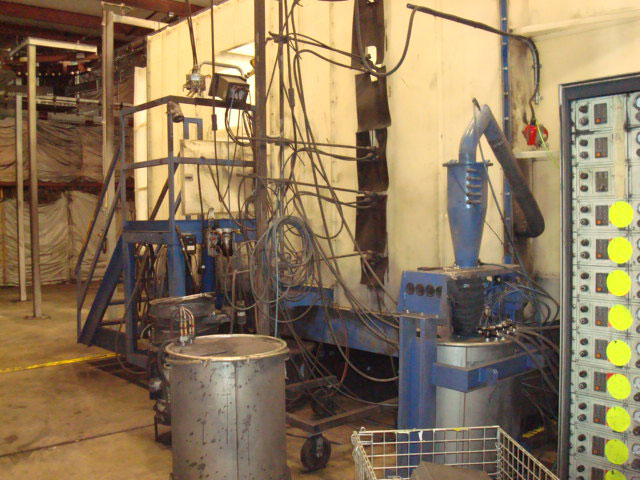

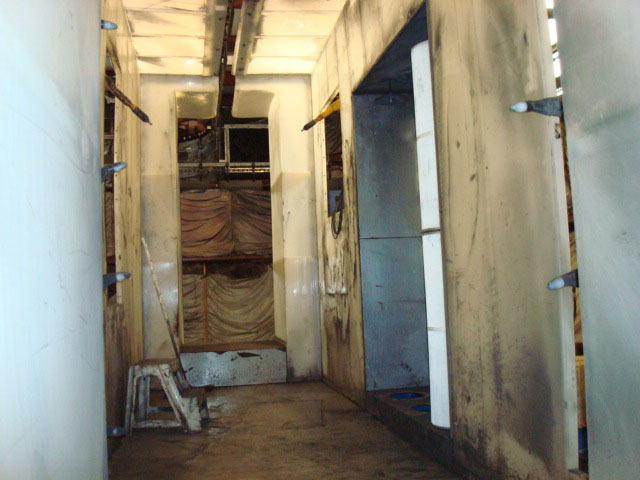

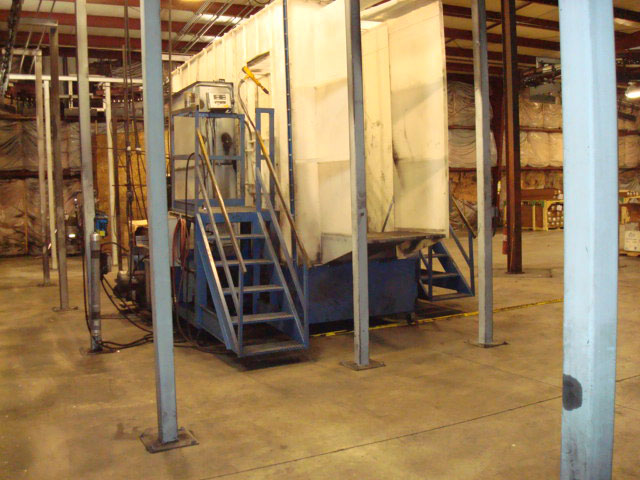

B-228: Nordson Econo-Coat 6000 Powder Booth System
Type of System: Side-Draft Powder Booth
Profile opening: 36” wide x 60” high
Dimensions: 27’ long x 15’ wide x 11’-6” high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, Control – 110 volt
Type of System: Side-Draft Reclaim Powder Booth
Profile opening: 4’-6” wide x 6’-3” high (Can be made larger)
Designed Line Speed: 16 FPM
Dimensions: 37’ long x 12’ wide x 12’-6” high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, Control – 110 volt
Condition – Excellent Removed from Service 11/06/10
(2) Available
System specs & components:
(1) Booth Base Assembly with Booth Mover
(1) Poly Upper Housing
(4) Manual Gun Openings
(8) Automatic Gun Openings
(1) Fan Section -14,400 CFM, 25 HP
(1) Powder Coated Collector Module (More Available)
(20) Versa Spray II Automatic Powder Guns & Control Units
(2) MC-3 Automatic Control Centers
(20) 12M, 100kV Control Cables
(2) Sure Coat Manual Powder Guns & Control Units
(2) Nutro Reciprocators
(3) Vertical Gun Positioner(s)
(4) Roof Mounted Gun Supports
(1) Rollaway Gun Stand
(1) HR-150 Powder Feed Hopper
(1) HR-150 Satellite Powder Feed Hopper
(23) 100-Plus Modular Powder Pumps
(1) Bulk Unloader
(4) Powder transfer kits
(2) Operator Platforms
(1) Excel 2003 Master Electrical Control Panel
(1) 12-Function Pneumatic Control Panel
(1) Fire Detection System
(1) Versa Screen Color LCD Interface
(1) Gun Control System
B-220: Nordson Excel 2003 Powder Booth System
Type of System: Down-Draft Powder Booth
Profile opening: 2’-6” wide x 3’-0” high (can be 3’ x 5’)
Dimensions: 21’ long x 14’ wide x 9’ high
Plant Utilities: Electric: 480 volt, 3-phase, 60 hertz, Control – 110 volt
Condition – Excellent
System specs & components:
(1) Booth Base Assembly
(1) Poly Upper Housing
(2) Manual Gun Openings
(2) Automatic Gun Openings
(1) Fan Section -6,000 CFM, 100 fpm face velocity
(1) Collector Module
(2) HTM-16 150# lb capacity hoppers
(10 Smart Coat Control System
(16) Versa Spray Automatic Powder Guns with Control
(1) Quick-Change Manifolds
(2) Gun Mounting Stations with In/Out Positioning
(16) 100-Plus Powder Pumps
(1) Azo Sieve
(1) Powder Accumulator with Inlet Ports
(6) Powder Transfer Pump Kits
(1) Bulk Feeder System
(1) Part Detection/Gun Triggering Package
(1) Fire Detection System
(1) Booth Mover Package
(2) Operator Platforms
(1) Master Electrical Control Panel
(1) Pneumatic Control Panel
B-230: Nordson Horizon 400 Powder Booth System
B-233: Nordson Excel 2001-S Powder Booth System ***3 Available***
Manufacturer: Nordson
New in 2006
Excellent condition, removed May, 2011

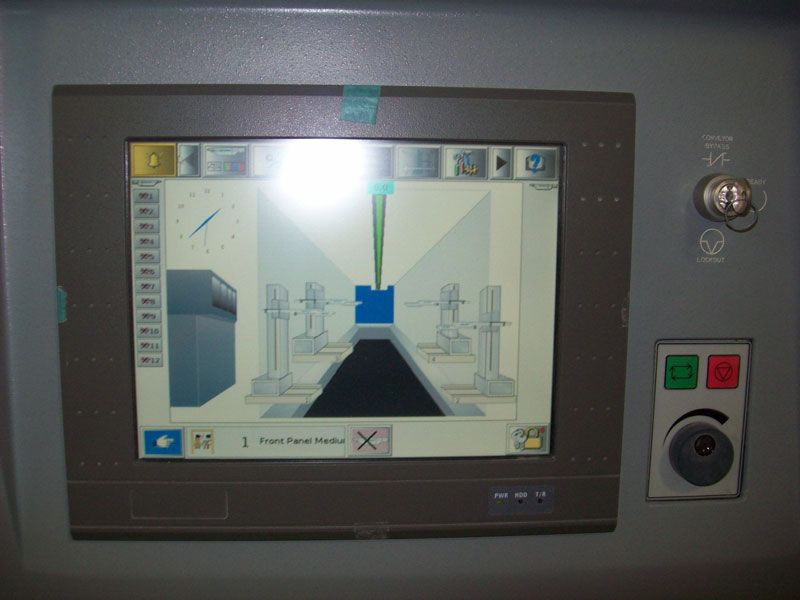

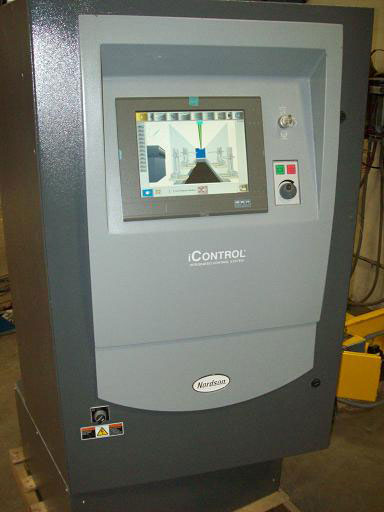

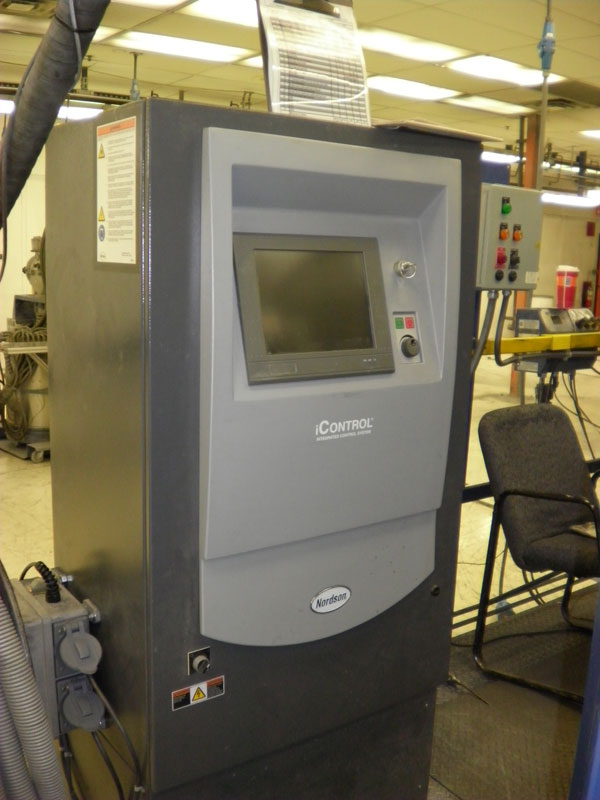

(1) iControl Integrated Control System

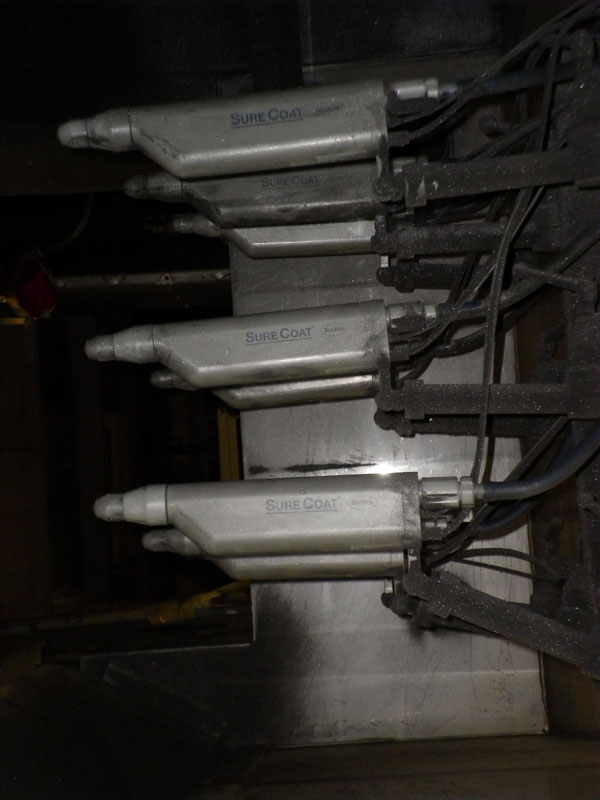

(16) Sure Coat Automatic Powder Guns
(16) 100kV Control Cables
(16) Gun Mounting Bars
B-229: Nordson iControl System with 16 Sure Coat Guns
